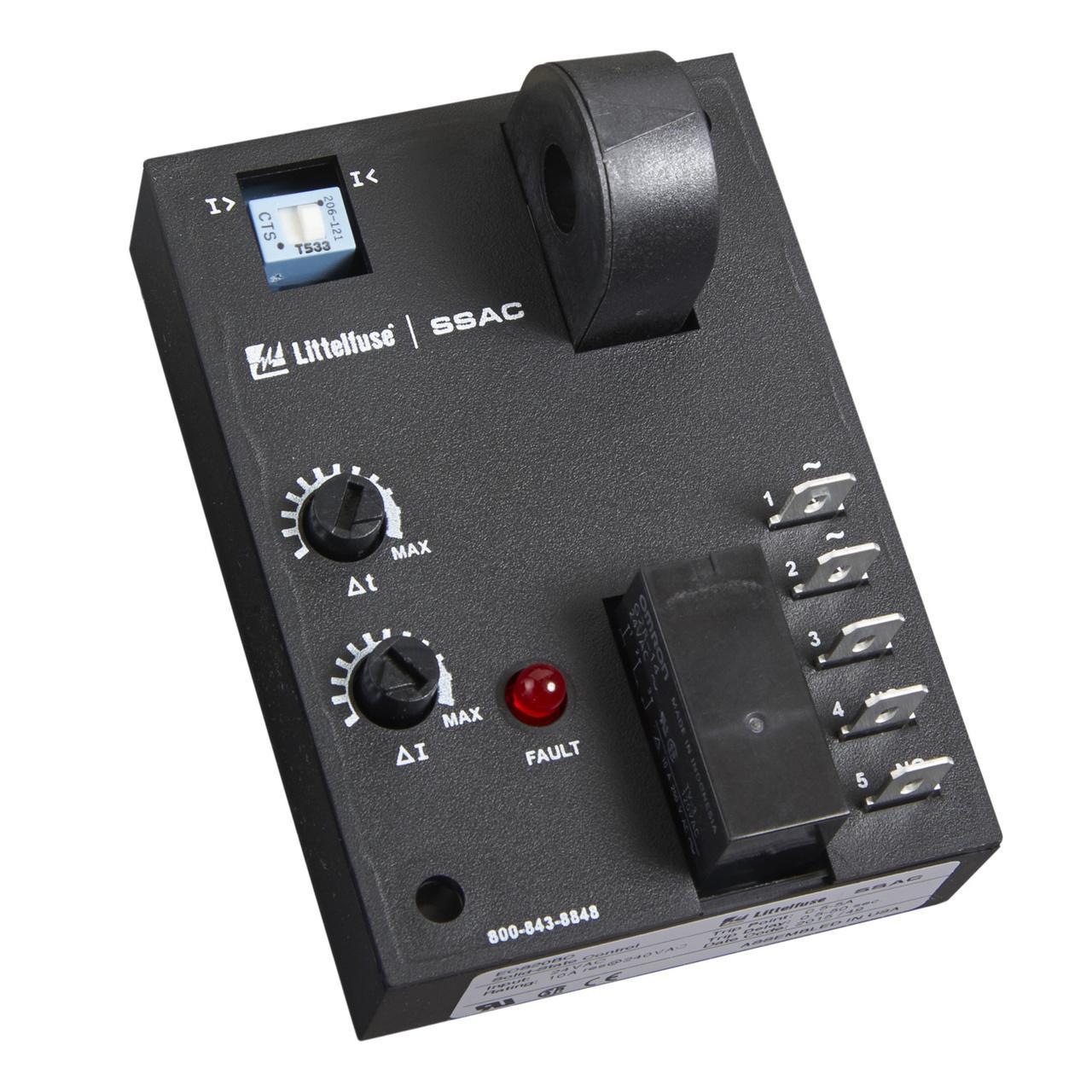

Littelfuse® SSAC® ECS20BC Isolated Electro Mechanical Current Sensor Relay, 24 V AC, 1 Form C SPDT Contact, 0.5 to 50 s Trip Delay
Sku #07945899233
MFG #ECS20BC
Attributes
| Type: | Isolated Electro Mechanical |
| Voltage Rating: | 24 V AC |
| Sensor Type: | Over/Undercurrent |
| Series: | ECS |
| Frequency Rating: | 45/500 Hz |
| Contact Configuration: | 1 Form C SPDT |
- Built-in toroidal current sensing eliminates need to install stand alone current transformer and provides isolation from monitored circuit
- Encapsulated, protects against shock, vibration and humidity
- Adjustable mode, trip point and trip delay, provides flexibility for use in many applications
- 10 A, SPDT isolated relay output - allows control of AC voltage loads
- -40 to 60 deg F operating temperature
- CE Certified|UL Recognized|CSA Certified|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
