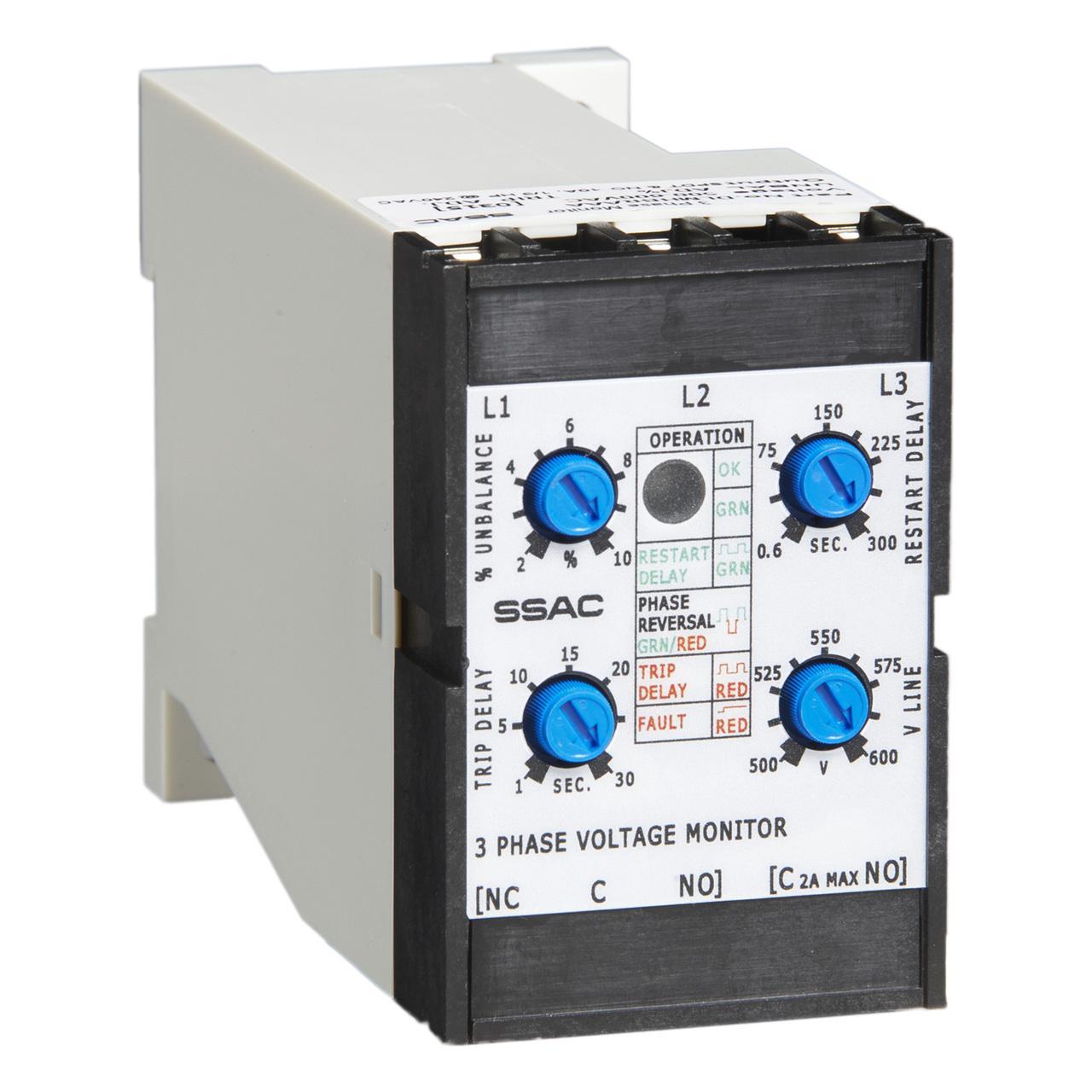

Littelfuse® SSAC® DLMUBRAAA 3-Phase Form 3 Isolated Electro Mechanical Voltage Monitoring Relay, 200 to 480 V AC, 1NO SPDT Contact
Sku #07945899213
MFG #DLMUBRAAA
Attributes
| Type: | 3-Phase Form 3 Isolated Electro Mechanical |
| Voltage Rating: | 200 to 480 V AC |
| Contact Configuration: | 1NO SPDT |
| Series: | DLMU |
| Frequency Rating: | 50/60 Hz |
| Mounting Type: | DIN Rail/Surface |
- UL Listed|CE Certified|cULus Listed|ASME A17.1 Rule 210.6|NEMA MG1 14:30, 14:35|IEEE C62.41
- Proprietary microcontroller based circuitry, constant monitoring to protect against phase loss, phase reversal, over voltage, under voltage, unbalance, short cycling and over/under frequency
- Universal line voltage range, flexibility to work in 200 to 480 VAC or 500 to 600 VAC applications
- DIN rail (35 mm) or surface mounting, installation flexibility
- LED indication provides diagnostics of relay, fault and time delay status
- User adjustable time delays prevents nuisance tripping and short cycling of sensitive equipment
- Staggered restart on restore
