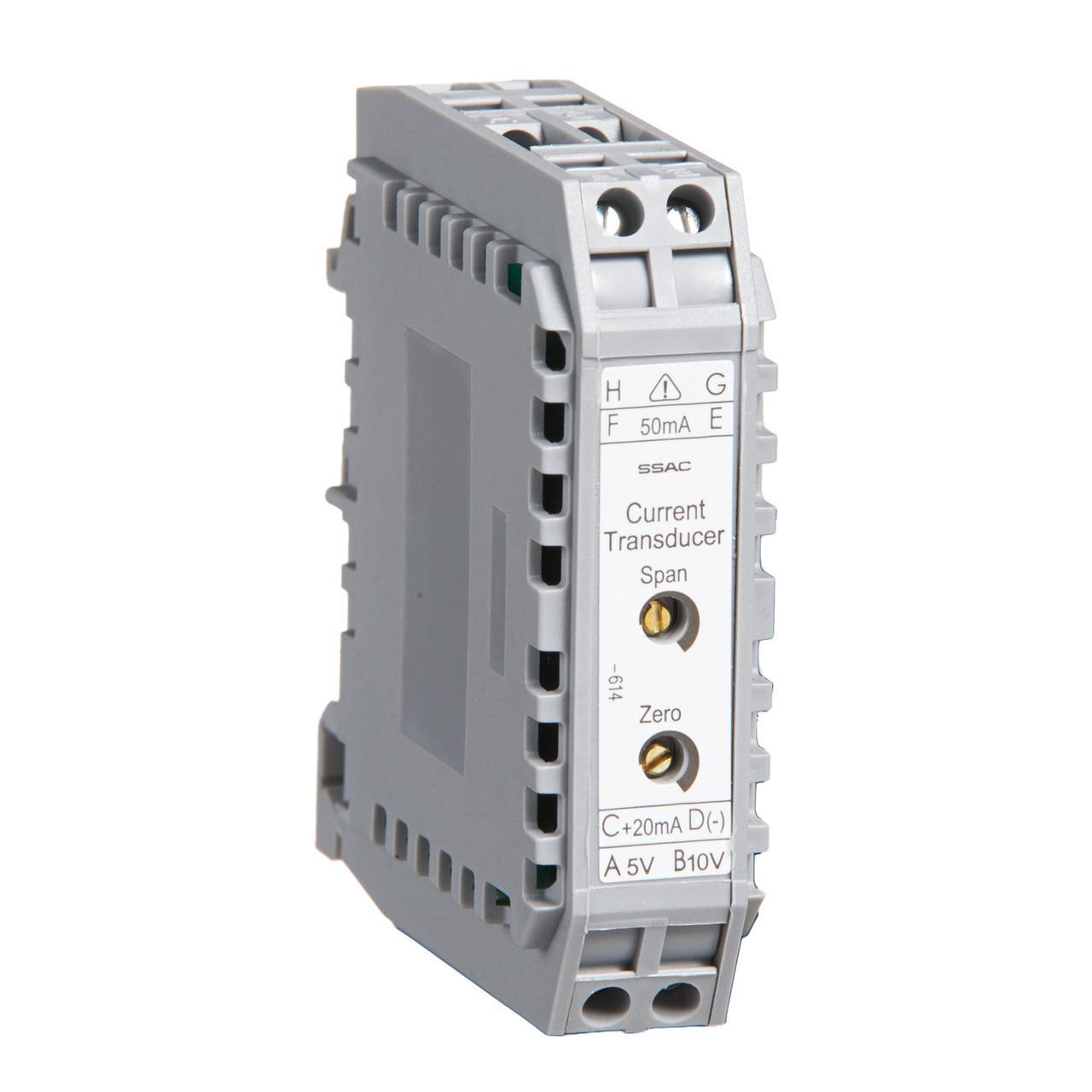

Littelfuse® DCSA50 Current Transducer, 0 to 50 mA AC Input, 10 to 30 V DC, 4 to 20 mA, 1 to 5 V DC or 2 to 10 V DC Output, +/-0.25 % Accuracy
Sku #07945899208
MFG #DCSA50
Attributes
| Series: | DCSA |
| Output: | 10 to 30 V DC, 4 to 20 mA, 1 to 5 V DC or 2 to 10 V DC |
| Electrical Connections: | Wire Clamp Terminal |
| Input: | 0 to 50 mA AC |
| Accuracy: | +/-0.25 % |
| Mounting Type: | DIN Rail |
- 0 to 50 A in 4 ranges using LCSC10T12 sensor
- Loop powered from 10 to 30 VDC
- Zero and span adjustments
- Separate sensor and control unit
- UL Recognized|CE Certified|CSA Certified|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
