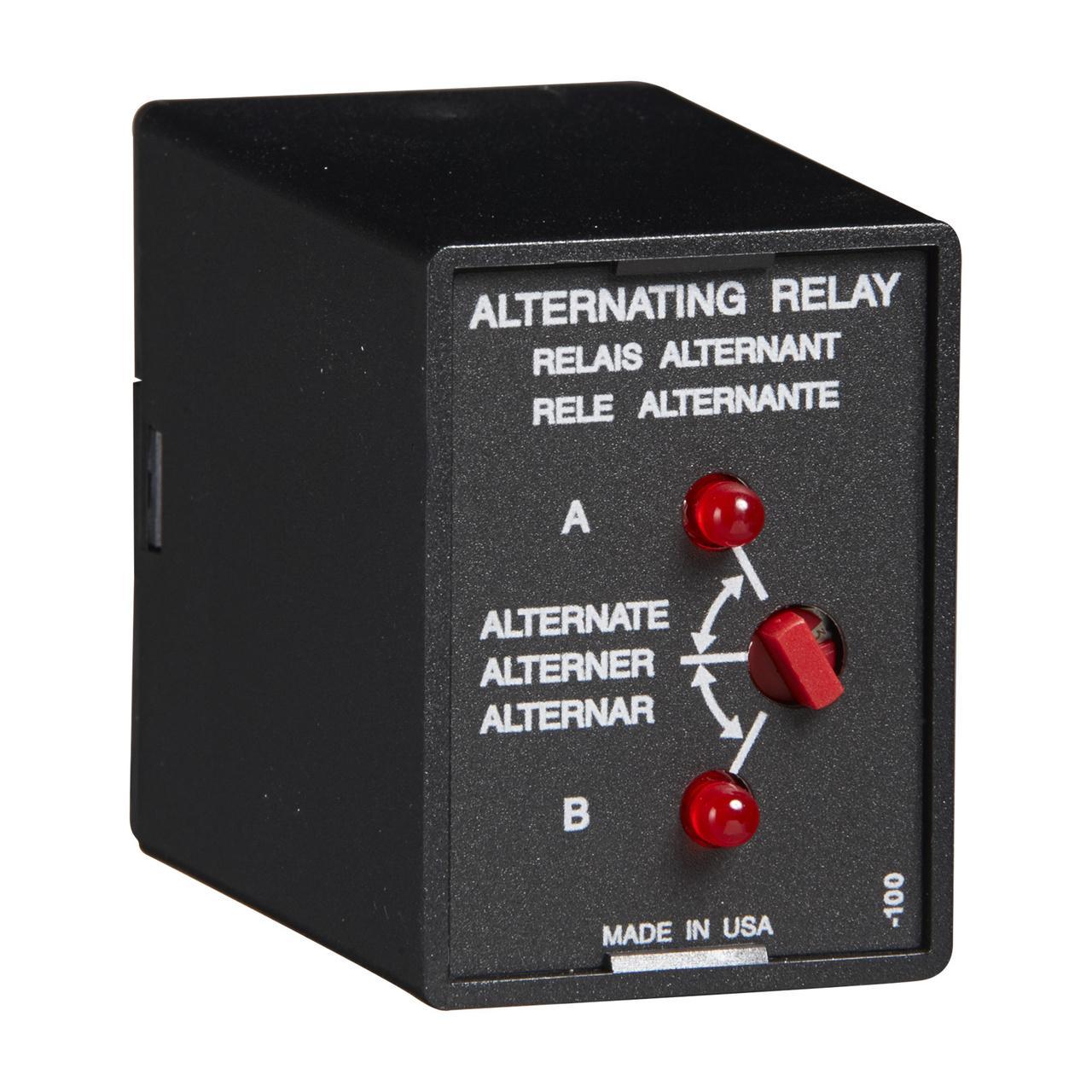

Littelfuse® SSAC® ARP63S Alternating Relay With Rotary Switch, 8 Pin, 2 Form C DPDT Contact, 230 VAC V Coil
Sku #07945899150
MFG #ARP63S
Attributes
| Series: | ARP |
| Coil Voltage: | 230 V AC |
| Contact Rating: | 10 A at 120/240 V AC, 28 V DC |
| Frequency Rating: | 50/60 Hz |
| Contact Form: | 2 Form C DPDT |
| Number of Pins: | 8 |
- Alternating or electrically locked operation flexibility to run unit alternating between the two loads as normal or lock the relay to one specific load
- Low profile selector switch prevents accidental actuation
- LED status indication - visual indication of which load is engaged
- Industry standard base connection flexibility to use in many applications
- Rotary switch allows user to lock internal relay to one specific load
- CE Certified|UL Recognized|cCSA C22.2 No. 14|UL File No. E57310|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
