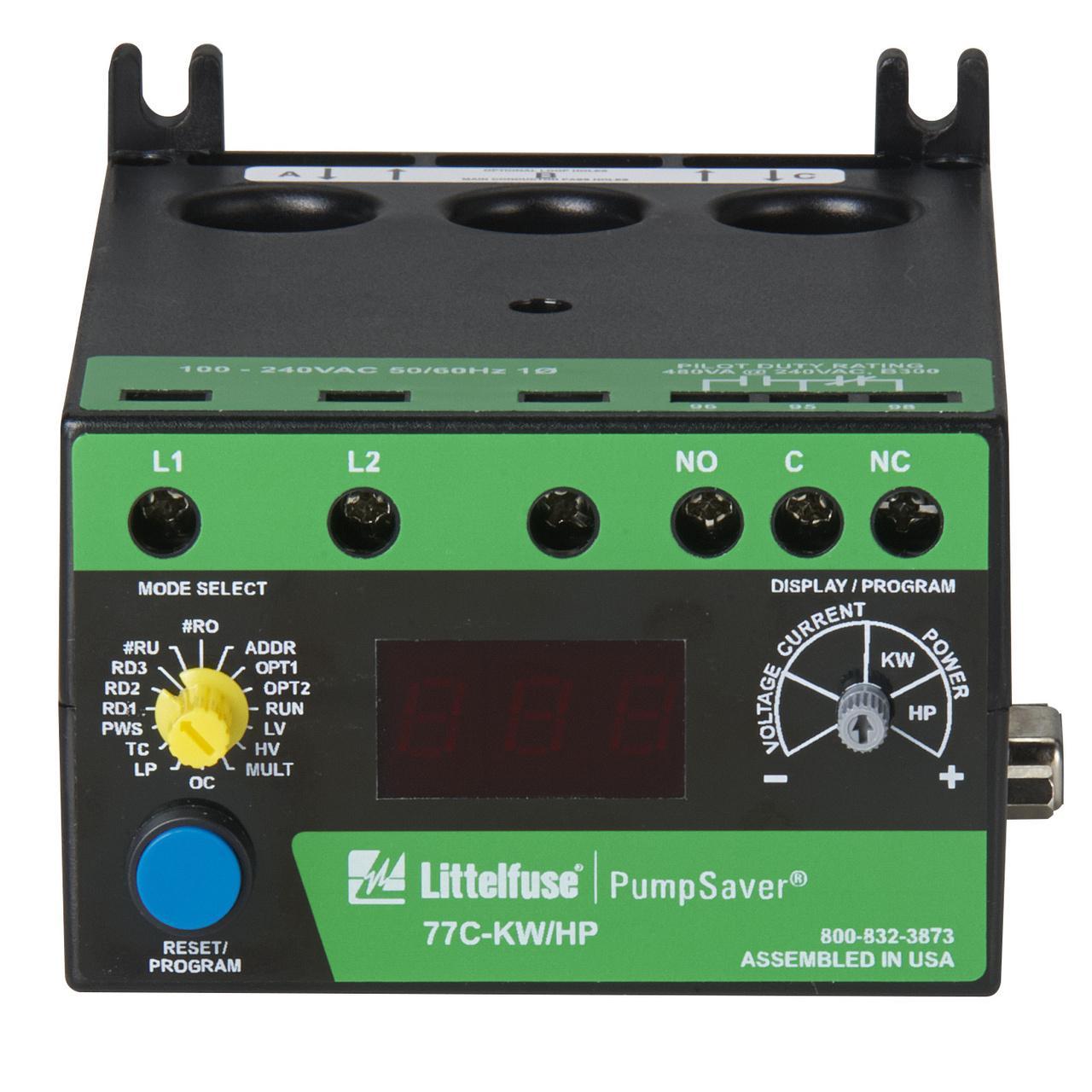

Littelfuse® Symcom 77C-KW/HP 1-Phase Power Monitor Relay, 100 to 240 V AC, 1 Form C SPDT Contact
Sku #07945899120
MFG #77C-KW/HP
Attributes
| Type: | 1-Phase |
| Voltage Rating: | 100 to 240 V AC |
| Contact Configuration: | 1 Form C SPDT |
| Series: | 77C-KW/HP |
| Frequency Rating: | 50/60 Hz |
| Mounting Type: | DIN Rail/Surface |
- Underload protection, increases reliability for non-linear motors where the load characteristic has little change
- Built-in display, visual indication for programming, viewing real-time voltage, current, kilowatts, or horsepower and last fault code
- 15 programmable criteria settings - allows user flexibility to fine tune the relay for maximum protection in any application
- Last fault memory, provides instant troubleshooting diagnostics
- Remote display compatibility, increases safety through remote display of run hour meter, last four fault codes, without the need to open the cabinet, aids with arc flash safety regulations
- Flexible reset, reset options, automatic, manual using pushbutton on relay or remotely with optional 777-MRSW remote reset kit
- Network communications capability, compatible with Modbus using optional communications module (RS485MS-2W)
- Conveyor Systems, HVAC Equipment, Saws and Grinders, Fan Motors and Pumping Applications
- UL 508/1053|CE Certified|IEC 68-2-3/60947-1/60947-5-1/61000-4-2/61000-4-6/61000-4-3/61000-4-4/61000-4-5|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
