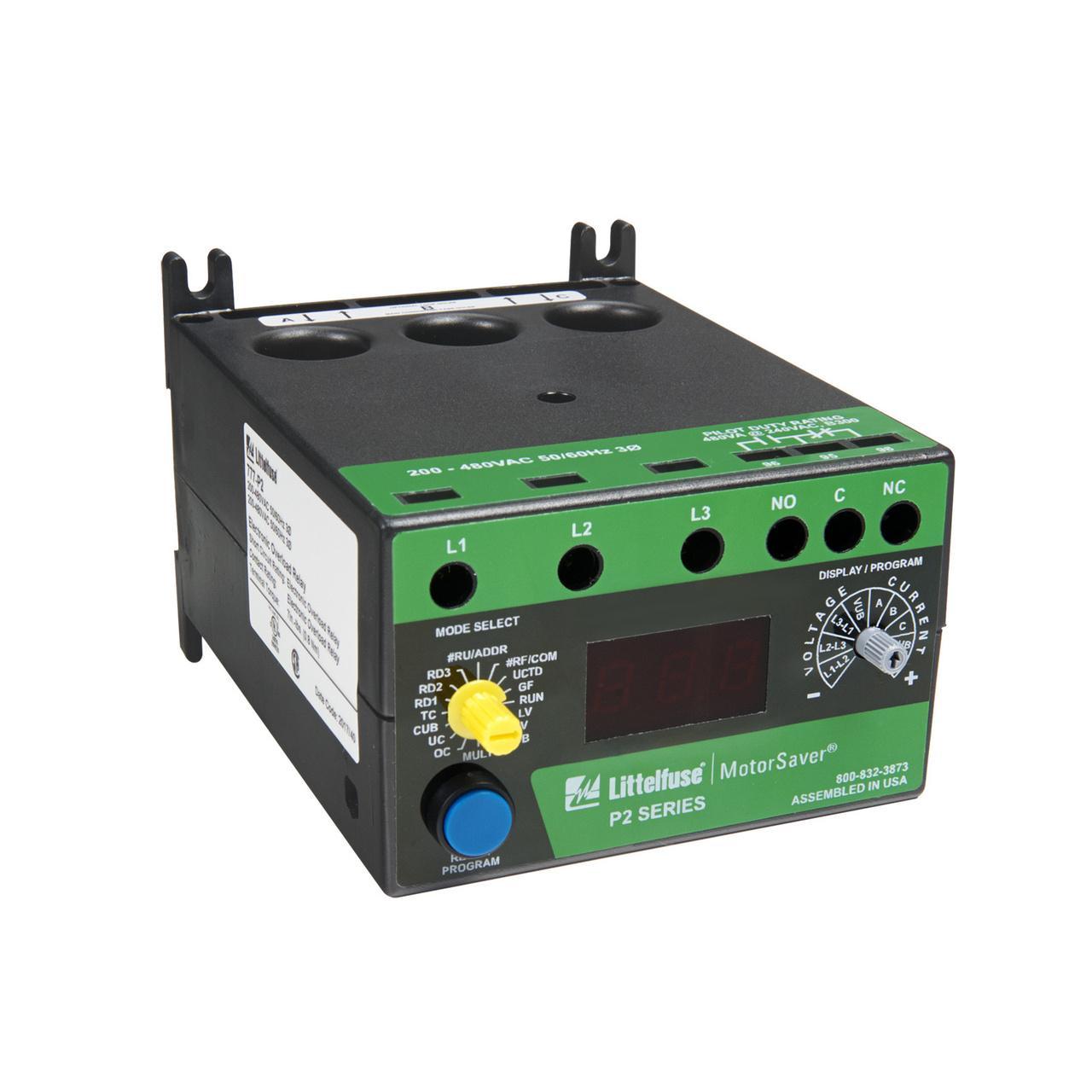

Littelfuse® 777-575-P2 3-Phase Overload Relay, 1 Form C SPDT Contact
Sku #07945899090
MFG #777-575-P2
Attributes
| Type: | 3-Phase |
| Power Rating: | 10 W |
| Contact Form: | 1 Form C SPDT |
| Series: | 777 |
| Frequency Rating: | 50/60 Hz |
| Contact Rating: | 10 A, 480 VA |
- Built-in display, visual indication for programming, viewing real-time voltage or current and last fault code
- Programmable voltage and current settings, allows usage on wide range of systems
- 3 selectable restart options, choose from automatic, semi-automatic or manual to best meet individual application needs
- 3 programmable restart delay timers, program separate restart delay time for rapid cycle protection, motor cool down and dry well recovery
- Remote display compatibility, increases safety through remote display of real time data and fault history, without the need to open the cabinet, aids with arc flash safety regulations
- Flexible reset, reset can be done through pushbutton on relay or remotely with optional 777-MRSW or OL-RESET remote reset kit
- Network communications capability, compatible with Modbus, DeviceNet™, Profibus, or ethernet using optional communications module
- 480 VA at 240 VAC, B300 pilot duty rating, 10 A at 240 VAC general purpose
- UL 508/1053 File No. E68520|CE IEC 60947-1/60947-5-1|IEC 68-2-27|CSA C22.2|ANSI/IEEE C62.41|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
