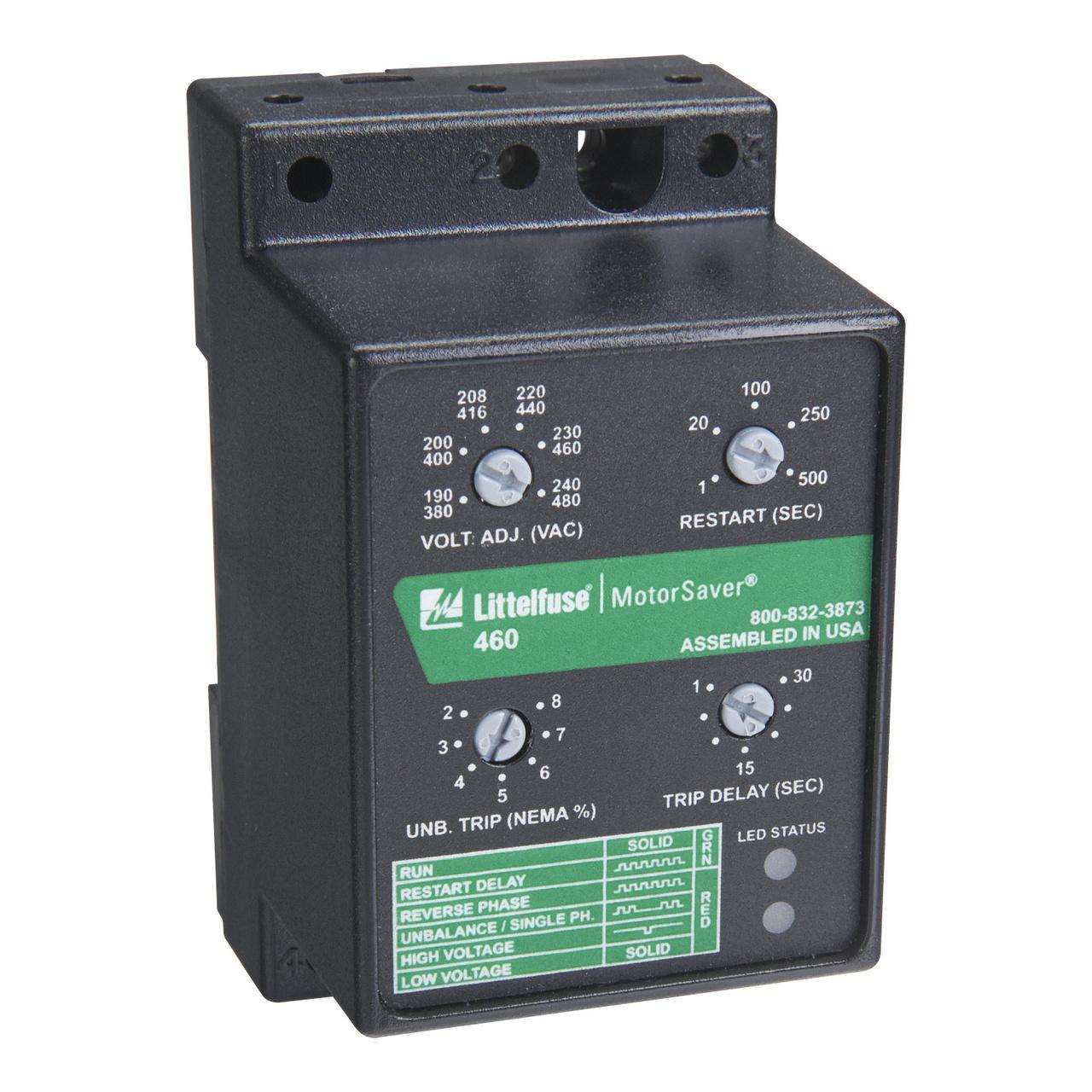

Littelfuse® Symcom MotorSaver® 460-MR 3-Phase Voltage Monitoring Relay, 190 to 480 V AC
Sku #07945899062
MFG #460-MR
Attributes
| Type: | 3-Phase |
| Voltage Rating: | 190 to 480 V AC |
| Mounting Type: | DIN Rail/Surface |
| Series: | 460 |
| Frequency Rating: | 50/60 Hz |
| Trip Delay: | 1 to 30 s |
- Auto-sensing wide voltage range, automatically senses system voltage between 190 to 480 VAC, saves setup time
- Adjustable trip & restart delay settings, prevent nuisance tripping due to rapidly fluctuating power line conditions
- Microcontroller based circuitry improved accuracy and higher reliability
- Advanced LED diagnostics quick visual indicator for cause of trip and relay status
- Adjustable voltage unbalance trip setting provides reliable protection when regenerative voltage is present
- Equipped with a 2-prong connection for a normally open push button mounted outside the panel
- 1 to 30 s adjustable trip delay time at low, high and unbalanced voltage
- Used in applications requiring an external manual reset button, to protect 190 to 480 VAC or 475 to 600 VAC, 50/60 Hz motors
- UL 508 File No. E68520|IEC 68-2-3|CE Certified|IEC 60947-6-2|ANSI/IEEE C62.41|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
