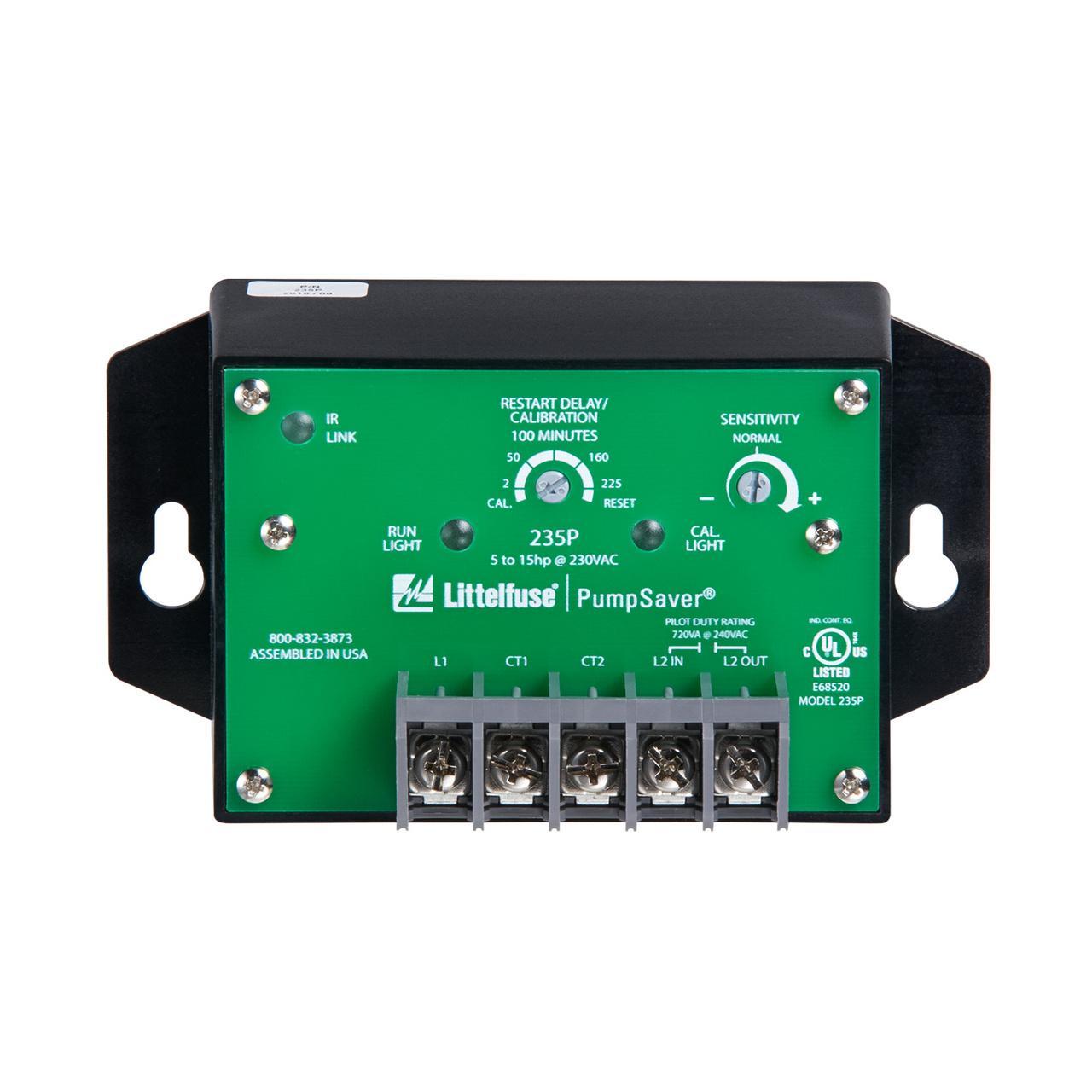

Littelfuse® Symcom 235P 1-Phase Pump Monitor Relay, 230 V AC, SPDT Contact
Sku #07945899037
MFG #235P
Attributes
| Type: | 1-Phase |
| Voltage Rating: | 230 V AC |
| Contact Configuration: | SPDT |
| Series: | 235P |
| Frequency Rating: | 50/60 Hz |
| Mounting Type: | Threaded |
- UL 508|cUL C22.2 File No. 14|cCSAus Certified|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- Proprietary microcontroller based circuitry, constant monitoring of voltage and current protects pumps from dry well, dead head, jammed impeller, rapid cycling and voltage faults
- Onboard calibration adjustment, allows user to adjust the current sensitivity for the dry well/dead head trip point from 70% to 90% of the full load
- Adjustable restart delay, allows user to select well recovery time delay after a dry well condition occurs, or to select manual reset
- Built-in IR communications link, used with the Informer, allows user to see stored faults, run time and also troubleshoot the pump while it's running
- LED indication, provides status and diagnostics for troubleshooting
- 5 s overcurrent, 4 s dry well trip delay range
