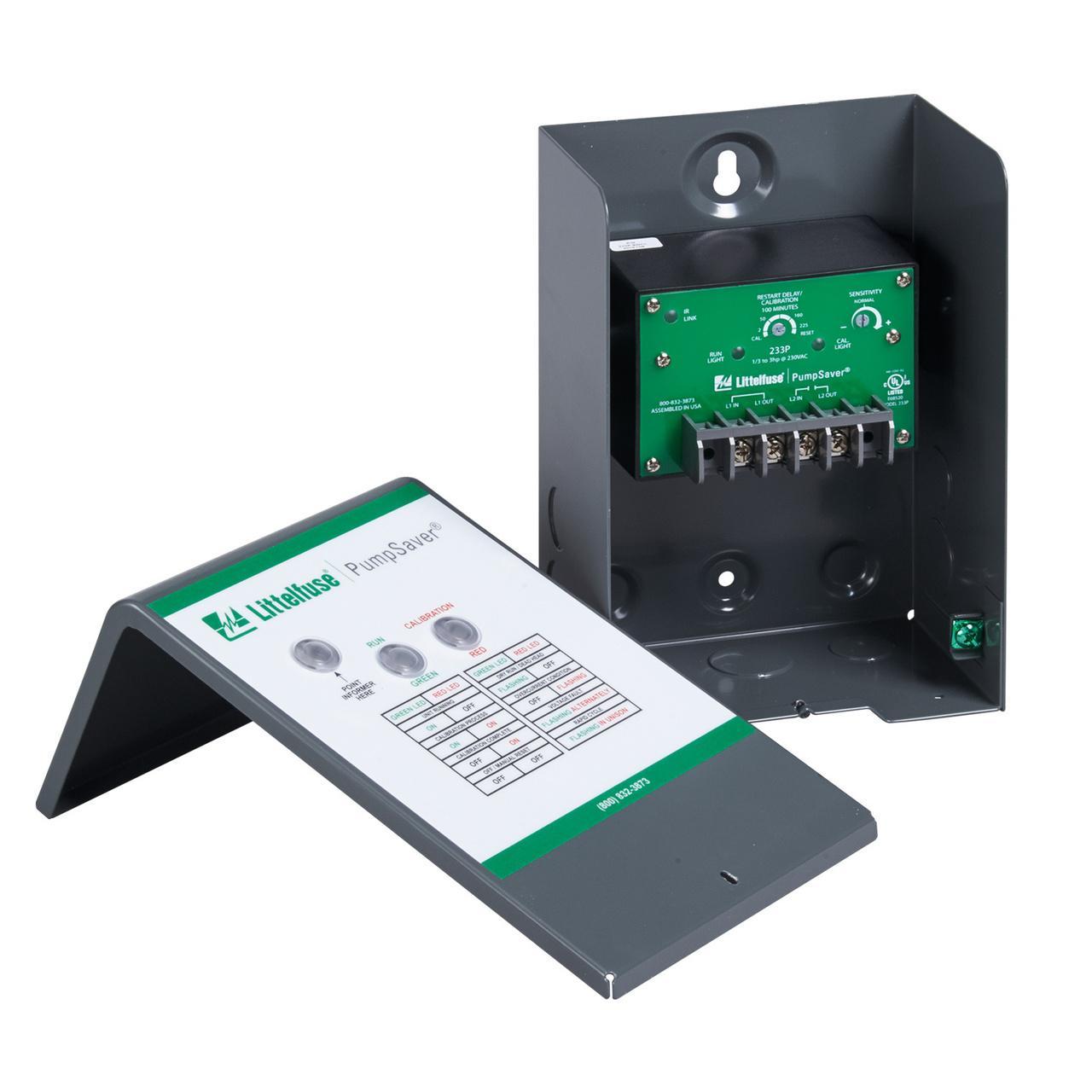

Littelfuse® Symcom PumpSaver® 233P 1-Phase Pump Protection Relay, 230 V AC, 1NO 1 Form A SPST Contact
Sku #07945899032
MFG #233P
Attributes
| Type: | 1-Phase |
| Voltage Rating: | 230 V AC |
| Contact Configuration: | 1NO 1 Form A SPST |
| Series: | 233P |
| Frequency Rating: | 50/60 Hz |
| Mounting Type: | Threaded |
- Used to protect 1-phase pumps from dry well, dead head, jammed impeller, rapid cycle, overvoltage and undervoltage conditions
- Proprietary microcontroller based circuitry constant monitoring of voltage, power factor, current for reliable pump protection
- Onboard calibration process, calibrates unit to your specific individual pumping application and reduces nuisance tripping
- Onboard sensitivity adjustment, user adjustable sensitivity knob makes the unit more adaptable to varying pumping applications
- 5 s overcurrent, 4 s dry well trip delay range
- UL 508|cULus C22.2 File No. 14|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
