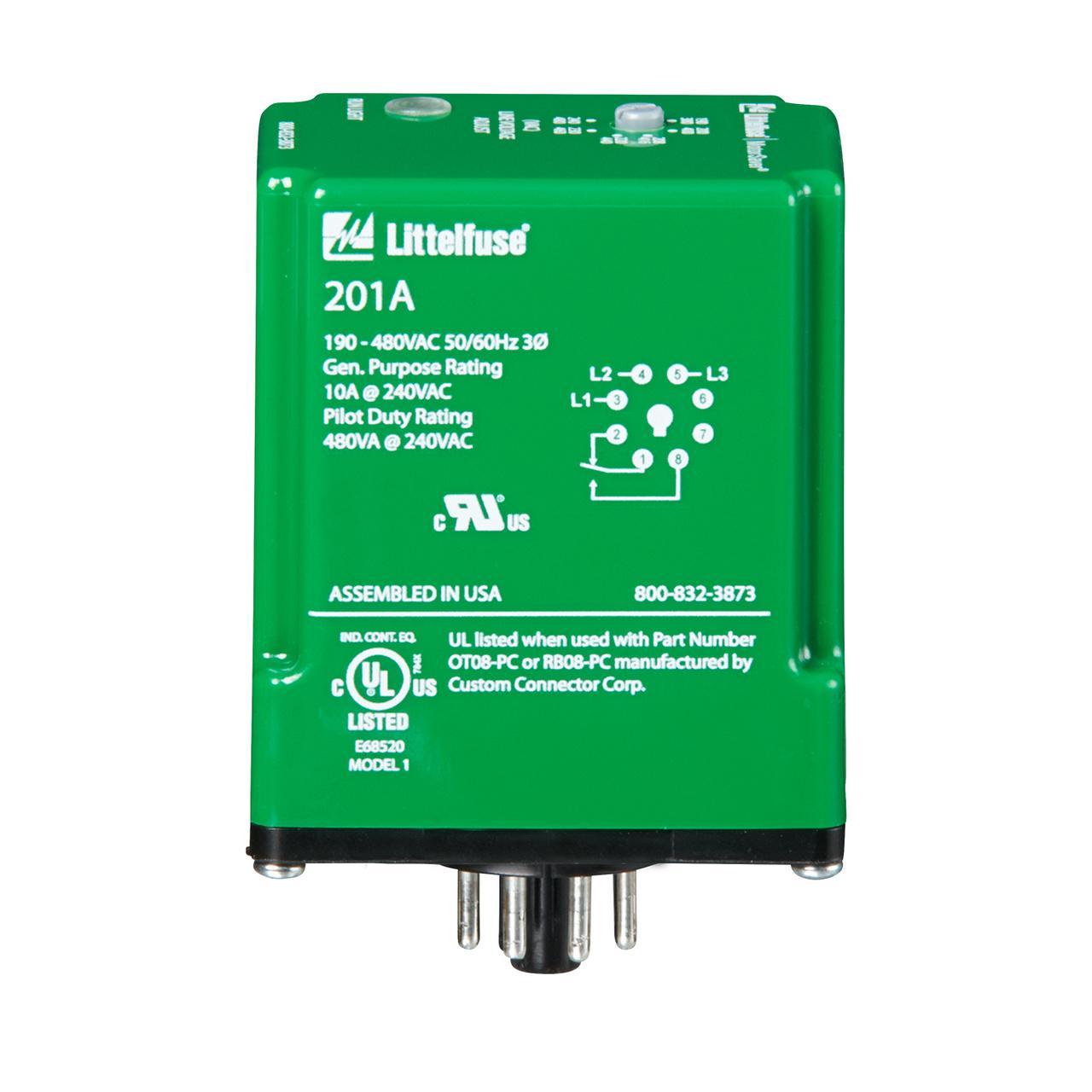

Littelfuse® Symcom MotorSaver® 201A-9 3-Phase Auto Ranging Dual Range Voltage Monitoring Relay, 190 to 480 V AC, 8 Pin, 1 Form C SPDT Contact
Sku #07945899022
MFG #201A-9
Attributes
| Type: | 3-Phase Auto Ranging Dual Range |
| Voltage Rating: | 190 to 480 V AC |
| Contact Configuration: | 1 Form C SPDT |
| Series: | 201A |
| Frequency Rating: | 50/60 Hz |
| Number of Pins: | 8 |
- Proprietary microcontroller based circuitry, constant monitoring of 1-phase, low voltage, voltage unbalance, phase reversal, harmful power line conditions, high voltage monitoring optional
- Compact design for 8-pin DIN rail or surface mount, allows flexibility in panel installation
- Auto-sensing wide voltage range, automatically senses system voltage between 190 to 480 VAC, saves setup time
- Advanced LED diagnostics quick visual indicator for cause of trip, LED indications include, normal operation, power-up restart delay, reverse phase trip, unbalance/ 1-phase trip, high/low voltage trip
- Includes high voltage detection
- High/low voltage fault 4 s, unbalance and phasing faults 2 s
- UL 508 File No. E68520|CE IEC 60947-6-2|IEC 68-2-3/61000-4-2/61000-4-4/61000-4-5|ANSI/IEEE C62.41|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
