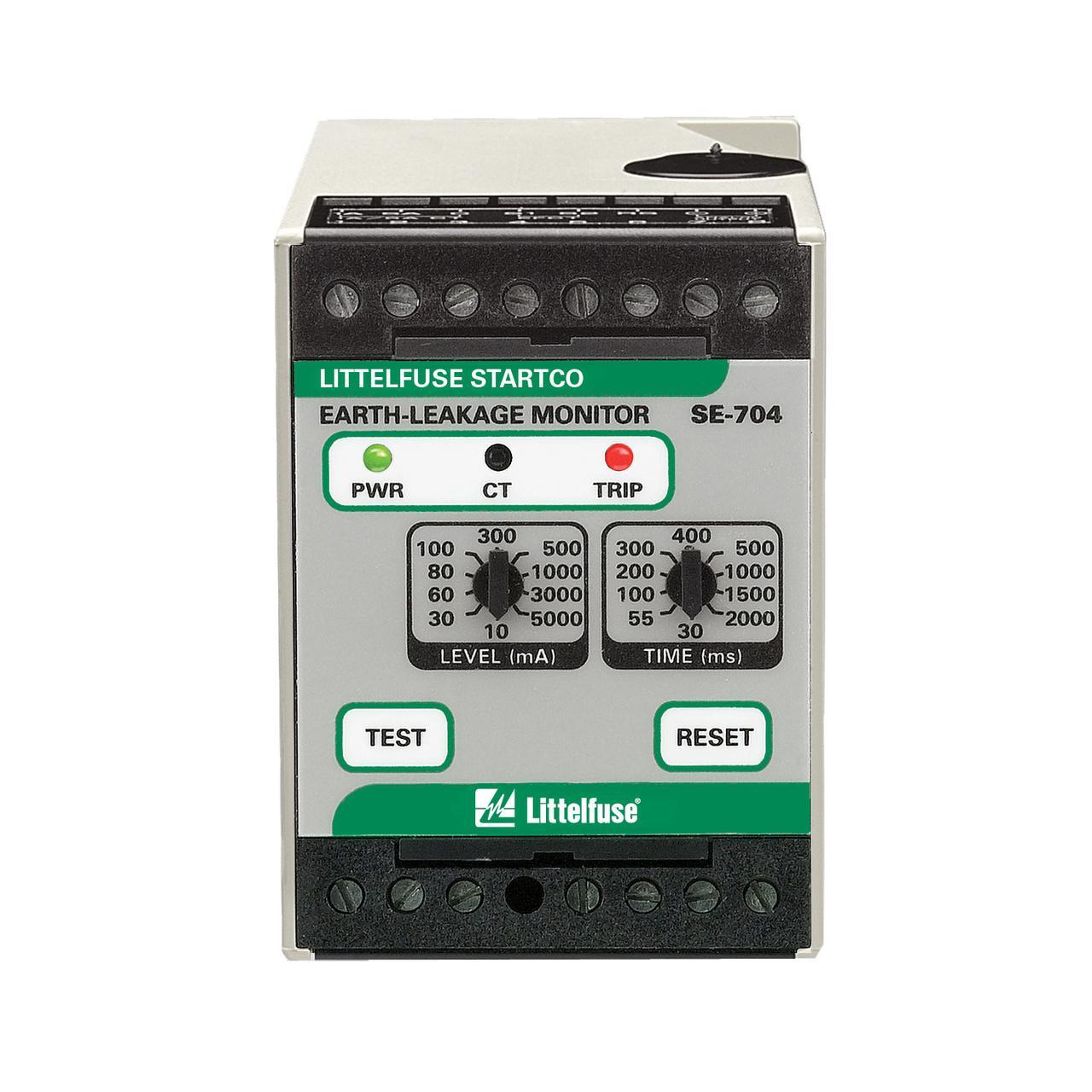

Littelfuse® SE-704-03 Earth Leakage Monitor, 24 V AC, 0 to 5 V DC, 0 to 1 mA Analog Output, Isolated NO (1 Form A), NC (1 Form B) Output Contact, 24 to 12 AWG Wire Clamping Terminal, DIN Rail Mount
Sku #07945898912
MFG #SE-704-03
Attributes
| Series: | SE-704 |
| Analog Output: | 0 to 5 V DC, 0 to 1 mA |
| Mounting Type: | DIN Rail |
| Voltage Rating: | 24 V AC |
| Specifications: | Isolated NO (1 Form A), NC (1 Form B) Output Contact, 24 to 12 AWG Wire Clamping Terminal |
| Dimensions: | 3 in H x 2.2 in W x 4.5 in D |
- Adjustable pickup (10 mA to 5 A) - adjustable trip setting provides a wide range of low level protection and system coordination
- Adjustable time delay (30 ms to 2 s) - adjustable trip delay allows quick protection and system coordination
- Form A and form B ground fault output contacts for operation of separate annunciation and trip circuits
- Analog output (0 to 5 VDC and 0 to 1 mA) allows for connecting an optional meter (PGA-0500) or control system
- CT-loop monitoring - alarms when CT is not connected
- Selectable fail safe or non-fail safe operating modes allows connection to shunt or undervoltage breaker coil
- Harmonic filtering eliminates nuisance tripping
- Non-volatile trip memory retains trip state when de-energized to simplify troubleshooting
- No calibration required, saves on maintenance cost
- Universal power supply allows operation in application where one side of PT is faulted, provides flexibility for numerous applications
- Industrial Applications
- cCSAus File No. LR53428|UL File No. E340889|CE Certified|C-Tick Certified|FCC CFR47 Part 15 Subpart B
