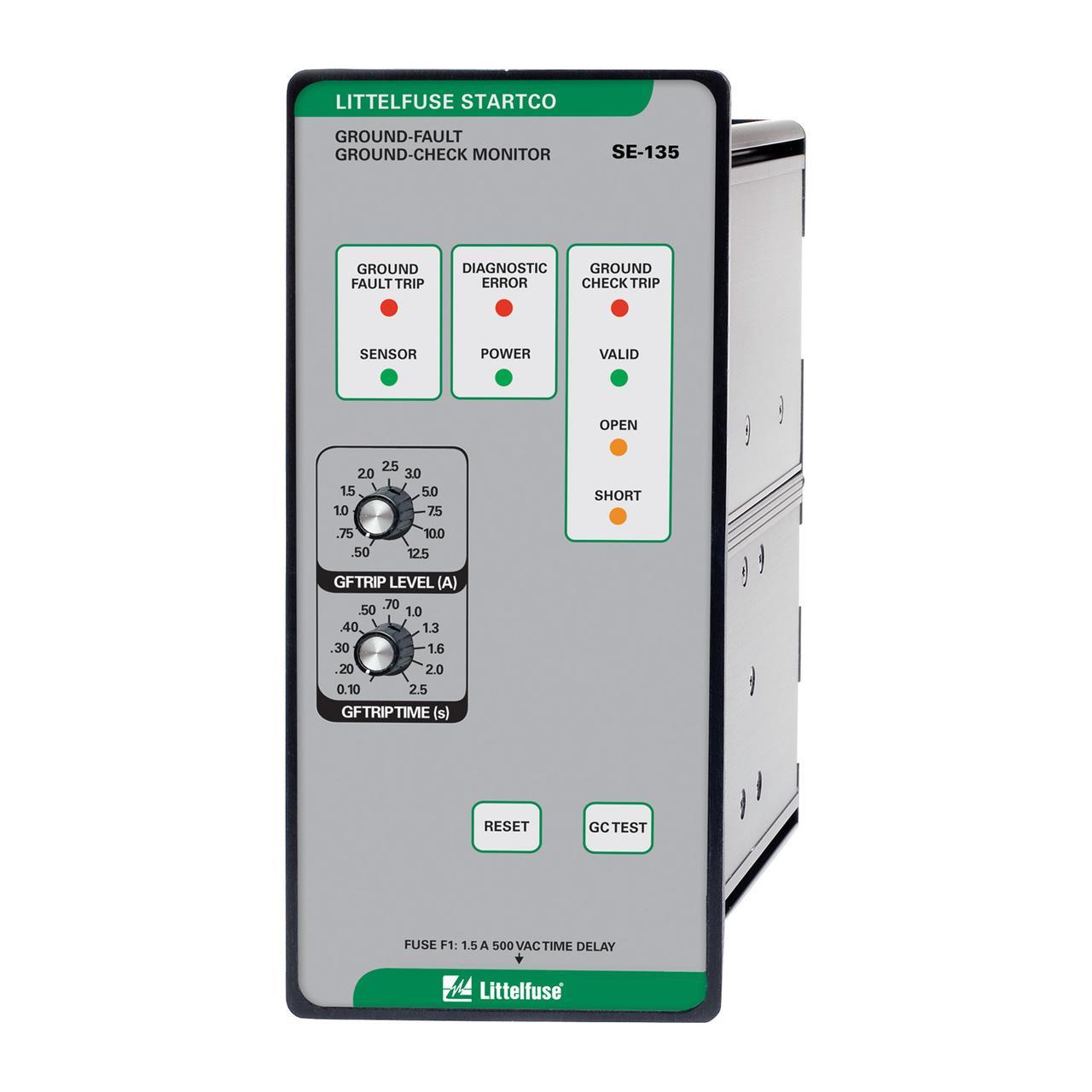

Littelfuse® SE-135-00 Ground Fault Ground Check Monitor, 120/240 V AC, Isolated NO (1 Form A), NC (1 Form B), NO-NC (2 Form C) Output Contact, Surface Mount
Sku #07945898802
MFG #SE-135-00
Attributes
| Series: | SE-135 |
| Specifications: | Isolated NO (1 Form A), NC (1 Form B), NO-NC (2 Form C) Output Contact |
| Dimensions: | 8.4 in H x 3.9 in W x 5.2 in D |
| Voltage Rating: | 120/240 V AC |
| Mounting Type: | Surface |
| Country of Origin: | MX |
- High quality
- Adjustable pickup 0.5 to 12.5 A unit can be used on a wide variety of trailing cable applications
- Adjustable time delay (1 to 2.5 s) -adjustable trip delay for quick protection and system coordination
- Output contacts separate annunciation of ground fault and ground check faults
- Indication of open or short ground check wire makes it easier to find faults
- CT-loop monitoring - alarms when CT is not connected
- High induced AC rejection makes unit suitable for applications with high voltages and long cables
- DFT (harmonic) filter prevents false operation
- Zener characteristic termination assembly provides reliable ground check loop verification
- Fail safe circuits ensures ground check and ground fault circuits remain safe even in the event of equipment failure
- Additional coating protects circuit boards against harsh environment
- CSA Certified|UL File No. E340889|C-Tick Certified|CE Certified|FCC Approved
- Industrial Applications
