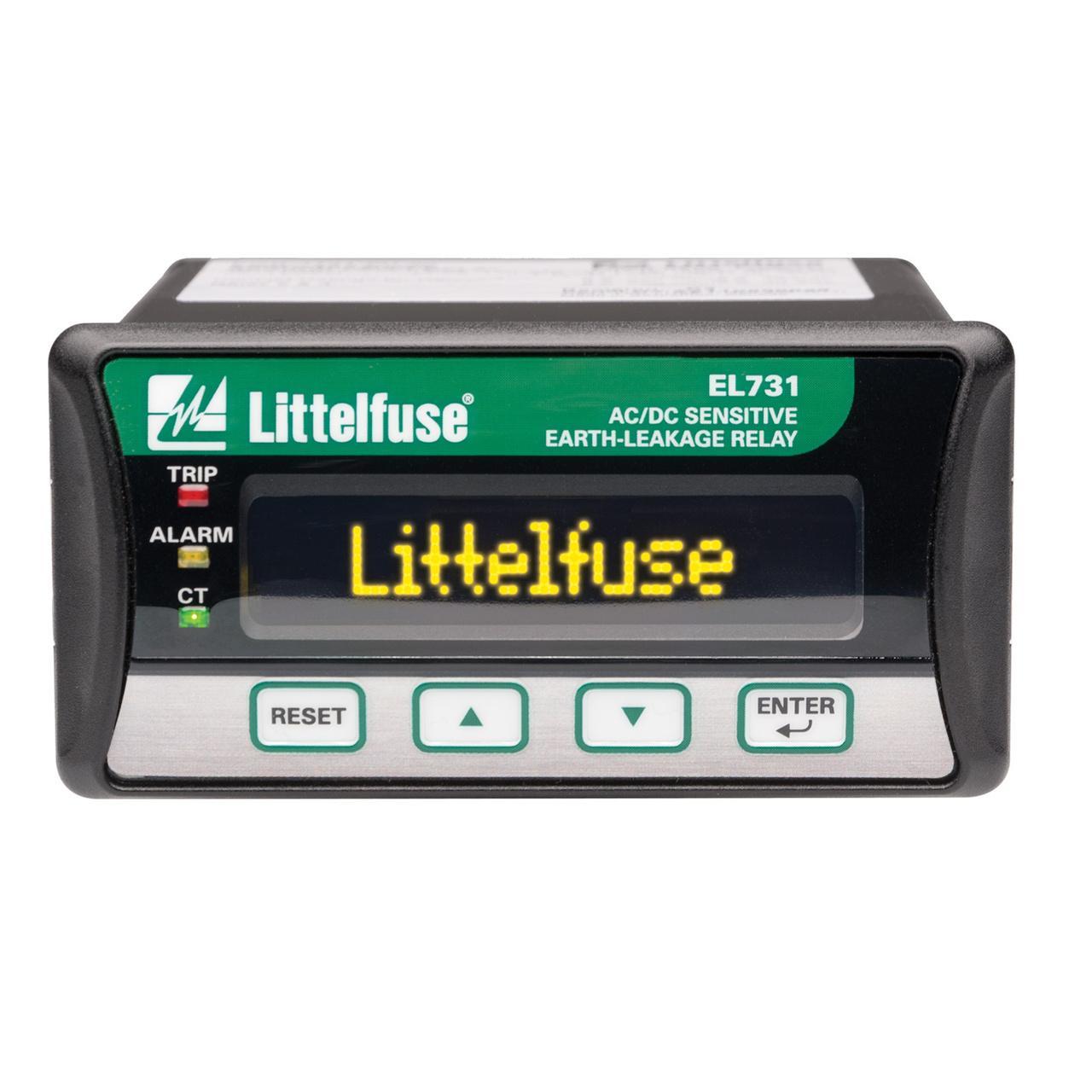

Littelfuse® EL731-02-00 Earth Leakage Relay, 120 V AC/240 V DC, 4 to 20 mA Analog Output, NO-NC (3 Form C) Programmable Output Contact, 24 to 12 AWG Plug-In, Wire Clamping Terminal, DIN Rail Mount
Sku #07945897776
MFG #EL731-02-00
Attributes
| Series: | EL731 |
| Analog Output: | 4 to 20 mA |
| Mounting Type: | DIN Rail |
| Voltage Rating: | 120 V AC/240 V DC |
| Specifications: | NO-NC (3 Form C) Programmable Output Contact, 24 to 12 AWG Plug-In, Wire Clamping Terminal |
| Dimensions: | 1.9 in H x 3.8 in W x 5 in D |
- Adjustable pickup (30 to 5000 mA)- adjustable trip setting provides a wide range of low level protection and system coordination
- Frequency range (0 to 90 Hz, 20 to 6000 Hz) - operate in either AC or DC mode or both, use single or combined ranges, separate metering
- 32-char OLED display earth leakage metering, setup and programming
- Local LED indication visual trip, alarm, CT connection indication
- CT-loop monitoring - alarms when CT is not connected
- Analog output (4 to 20 mA)- connect to DCS, allows connection to an optional meter (PGA-0520) or control system
- Adjustable trip delay for quick protection and system coordination
- Alarm and trip settings detect a deteriorating condition before damage occurs
- Temperature-sensor input drive or motor temperature protection
- Output contacts 3 programmable, operate 2 alarm and 1 trip circuit
- Eliminates nuisance tripping due to harmonic noise
- Microprocessor based- no required calibration saves maintenance cost
- Universal power supply provides flexibility for numerous applications
- Profibus communications
- For used to add low level ground fault protection to variable speed drives and to DC currents
- UL File No. E340889|cCSAus File No. LR53428|RCM Certified|CE Certified|C-Tick Certified|FCC CFR47 Part 15 Subpart B
