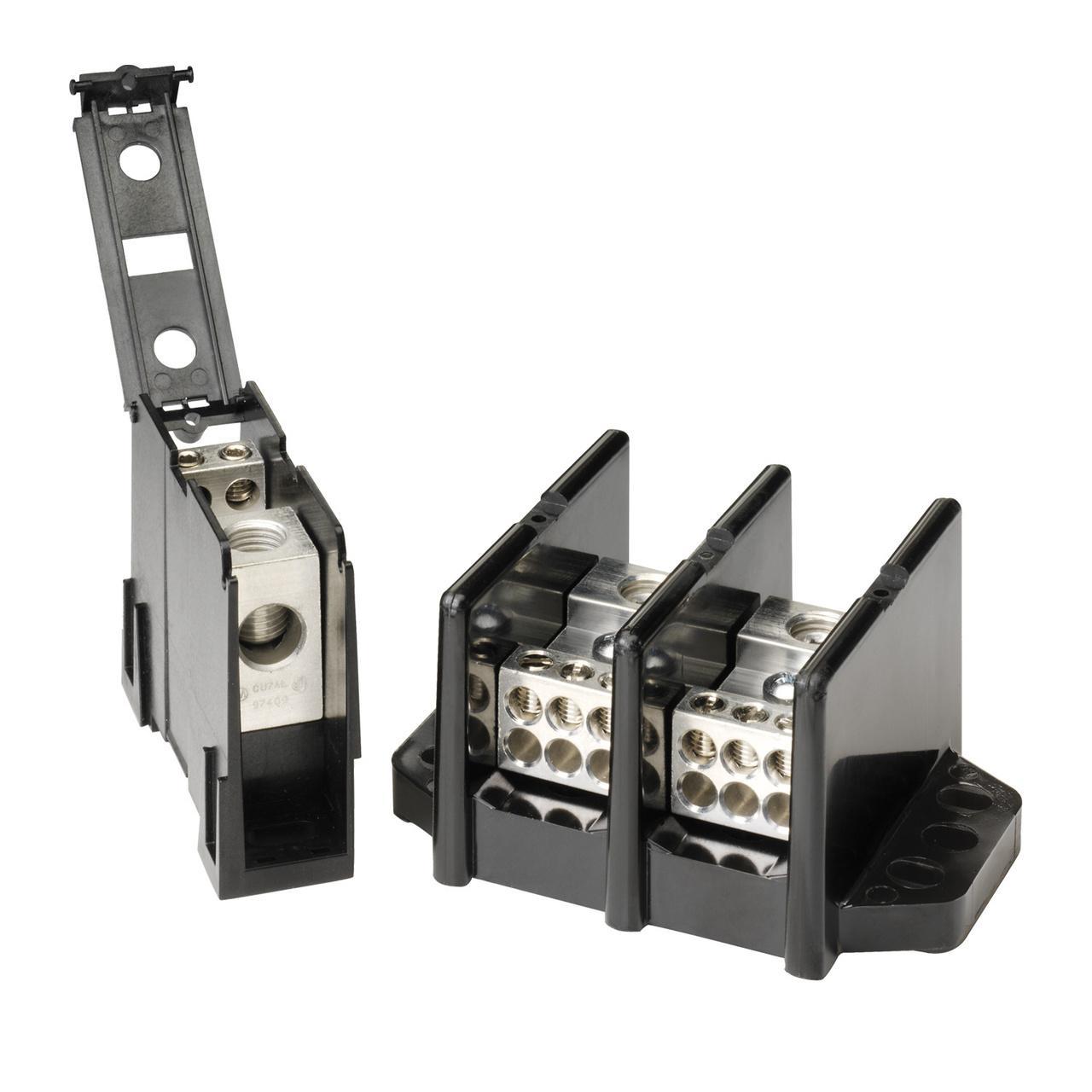

Littelfuse® LFD0401-3 LD Series Splicer Terminal Power Distribution Block, 600 V AC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Thermoplastic
Sku #07945894501
MFG #LFD0401-3
Attributes
| Type: | Splicer Terminal |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Series: | LD Series |
| Amperage Rating: | 175 A |
| Primary Connections/Pole: | 1 |
- For anywhere power needs to be distributed to more than one load applications
- Bolt-in mount
- Two thread cutting screws are furnished for each cover
- Covers are slotted for easy installation
- (1) 14 to 2/0 AWG line, (6) 14 to 4/0 AWG load rated wire range
- (1) box lug primary, (6) box lug secondary
- UL Recognized|UL File No. E171395|CSA Certified|CSA File No. LR700111|94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer|UL94 V-0/UL E171395|LFD/LFS E309688|CSA LR700111/LFD/LFS 007316_0_000|UL E482231|RoHS Compliant
