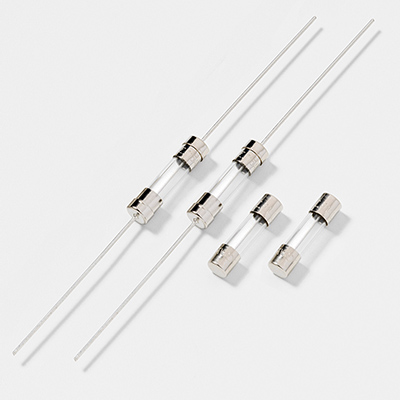

Littelfuse® POWR-GARD® 235003P Fast Acting Cartridge Fuse, 3 A, 250 V AC, 10 kA, Class RK5, Cartridge Body
Sku #07945890846
MFG #235003P
Attributes
| Type: | Fast Acting |
| Amperage Rating: | 3 A |
| Interrupt Rating: | 10 kA |
| Series: | 235 |
| Voltage Rating: | 250 V AC |
| Class: | RK5 |
- UL 248-12|UL 198M|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
- 0.03465 ohms resistance
- 8.395 I2T (A2 sec) nominal melting
- -55 to 125 deg C operating temperature
- Lead free
- Nickel-plated brass cap, tin plated copper leads
- 4 hrs minimum at 100%, 1 hr maximum at 135%, 5 sec at 200% opening time
- 10 kA at 125 VAC interrupting rating
- General Purpose Applications
