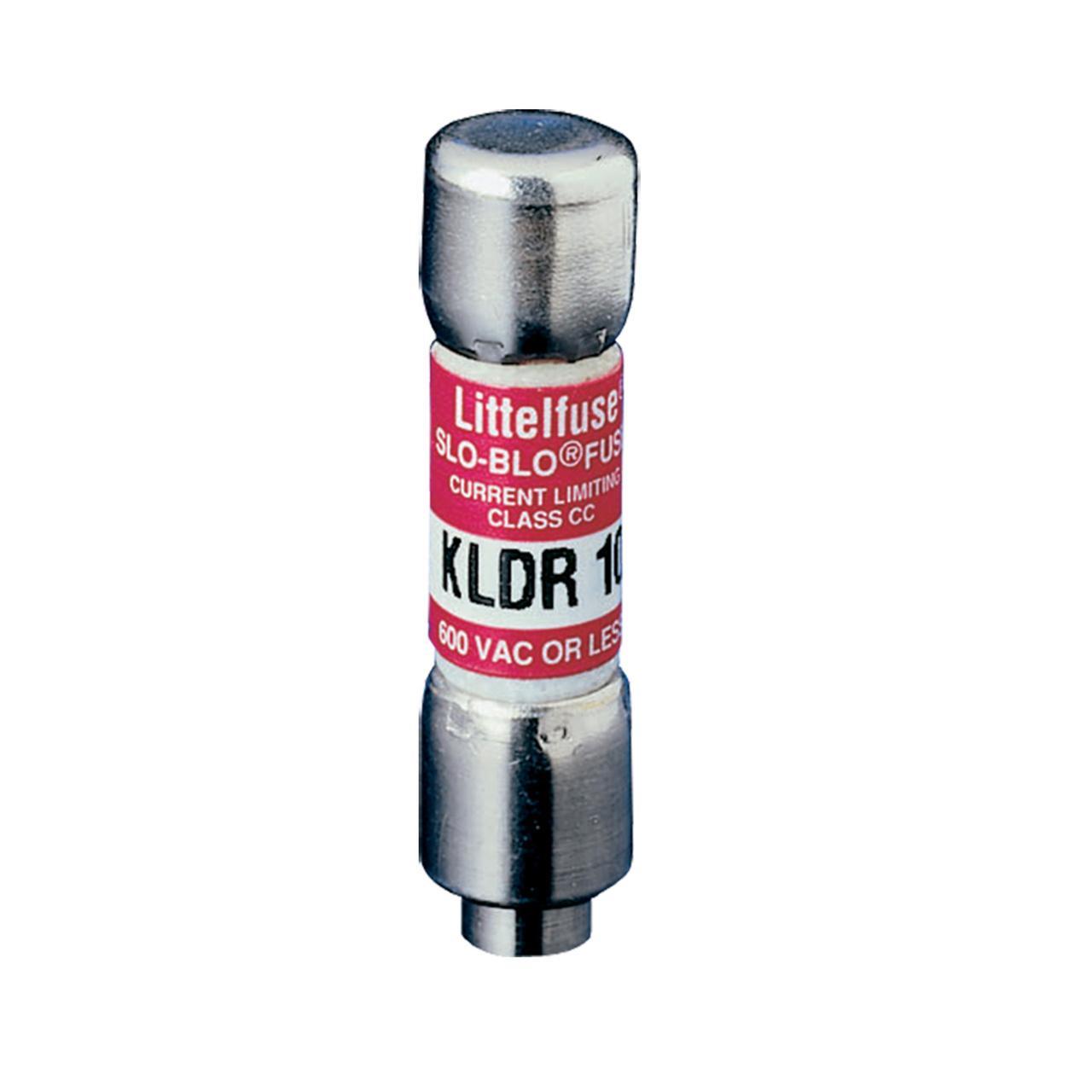

Littelfuse® POWR-GARD® KLDR003.TXP Current Limiting Time Delay Fuse, 3 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Sku #07945879258
MFG #KLDR003.TXP
Attributes
| Type: | Current Limiting |
| Indicating/Non-Indicating: | Non-Indicating |
| Amperage Rating: | 3 A |
| Series: | KLDR |
| Rejection/Non-Rejection: | Rejection |
| Voltage Rating: | 600 V AC/300 V DC |
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating
- Nickel plated bronze cap
- 12 sec minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
- UL 248-4|E81895|CSA LR29862|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- For transformer protection applications
