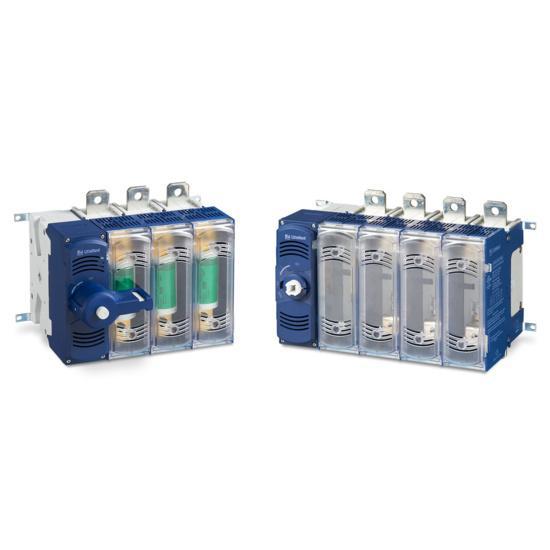

Littelfuse® LM32003DJ LM3200 Class J Disconnect Switch, 600 V AC, 200 A, 50 hp at 240 V AC, 100 hp at 480 V AC, 125 hp at 600 V AC, DPST Contact, 3 Poles
Sku #07945831154
MFG #LM32003DJ
Attributes
| Type: | Class J |
| Voltage Rating: | 600 V AC |
| Horsepower: | 50 hp at 240 VAC, 100 hp at 480 VAC, 125 hp at 600 VAC |
| Series: | LM3200 |
| Amperage Rating: | 200 A |
| Phase: | 3 |
- Service switchboards, distribution panels, control panels/motor control centers, compressors, drives, voltage stabilizers, UPS systems, HVAC/R air handling units, rooftop systems, compressors, chillers, refrigeration racks, Mining conveyor systems, main substations, Renewable Energy auxiliary services transformers
- Fuse isolation Makes it easy to segregate a particular fuse on the circuit for safe repair or maintenance
- Double break contact system Breaks circuit upstream and downstream enabling the switch to handle higher voltages and provide a longer switch life
- Optional handles (direct handle with push-to-detach system or external handle with shaft) with front or side operations
- Safe-to-touch transparent fuse covers Cannot be opened in the ON position for extra protection and provides visibility to fuses without opening module for added convenience
- Lockout-tagout When the device is in the OFF position, a padlock can be added to ensure equipment is properly shut off during maintenance or repair to prevent the release of hazardous energy
- Horizontal (standard), vertical and 45 deg mounting orientations
- Test position on handle Permits control circuit auxiliary testing without switching the main contacts on for added safety
- UL 94 V-0 Flammability Rating|UL 98|UL 94|UL Listed E513470|CSA C22.2 NO 4|CE Certified|RoHS Compliant|REACH Compliant
