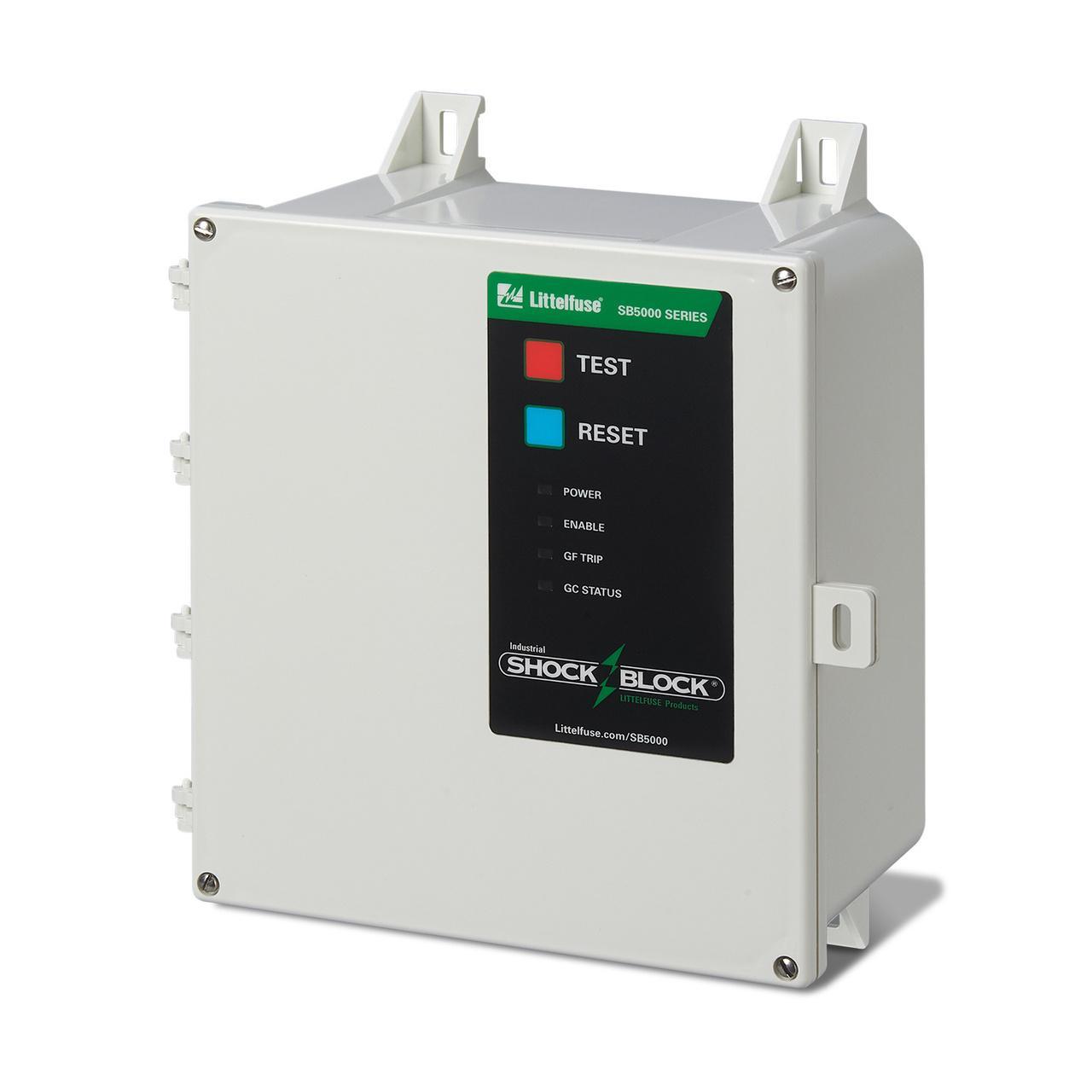

Littelfuse® SB5032-021-0 SB5000 Series Industrial Shock Block, 208 V, 32 A
Sku #07945829441
MFG #SB5032-021-0
Attributes
| Type: | Industrial |
| Voltage Rating: | 208 V |
| Frequency Rating: | 60 Hz |
| Series: | SB5000 Series |
| Amperage Rating: | 32 A |
| Trip Range: | 6 mA |
- UL 943 inverse time trip curve, Inverse time detection circuit protects people while also reducing the probability of nuisance tripping
- DFT (Discrete Fourier Transform) filtering algorithm eliminates nuisance trips due to harmonics
- Minimum trip time < 20 msec reduces the risk of ventricular fibrillation for leakage current of 250 mA and above
- Fixed 6 mA (UL 943) or 20 mA (UL 943C) trip level UL Listed GFCI and Special-Purpose GFCI personnel protection for industrial and commercial loads up to 60 A
- Two-stage ground monitor with Zener termination that meets UL 943C, CSA M421
- Flexible configuration selectable manual reset or autoreset for brownout, power up, and ground monitor interruptions to fit plant safety protocols
- Auxiliary contact alerts your SCADA system if the Shock Block is energized or tripped
- Automatic self-test the Shock Block will continuously test itself and will trip if there is an internal failure
- GFCI Class A, C, D and EGFPD options in one series simplified planning and operator familiarity for multiple applications/requirements
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=6300365223001
- For Commercial and Industrial Applications
- UL Listed|cURus Listed
