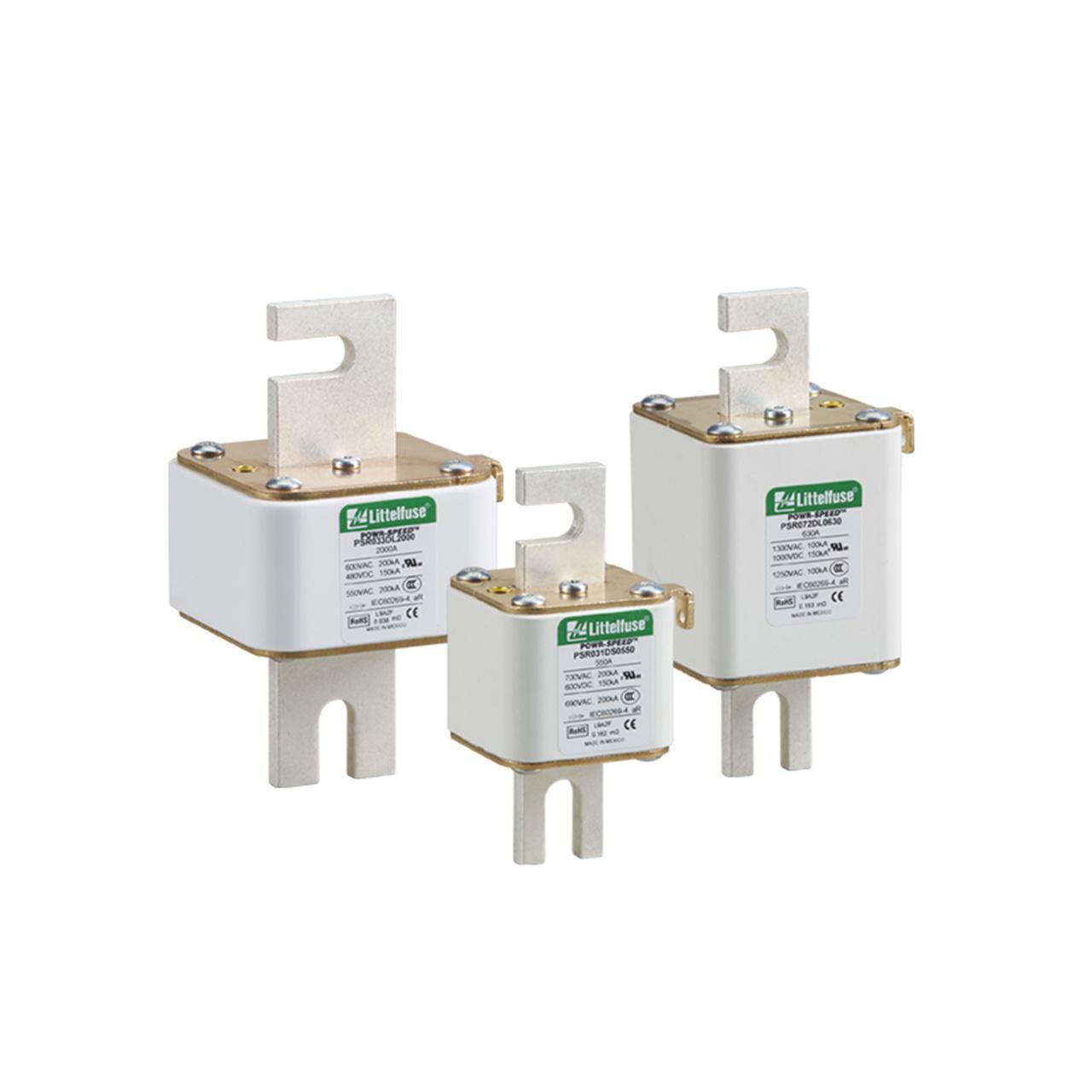

Littelfuse® PSR073DL0900X PSR Semiconductor Fuses Semiconductor Fuse, 900 A, 450 to 1000 VDC, 450 to 1300 VAC, 100 to 200 kA AC, 150 kA DC Interrupt, Square Body
Sku #07945827817
MFG #PSR073DL0900X
Attributes
| Type: | Semiconductor Fuses |
| Amperage Rating: | 900 A |
| Interrupt Rating: | 100 to 200 kA AC, 150 kA DC |
| Series: | PSR |
| Voltage Rating: | 450 to 1000 V DC/450 to 1300 V AC |
| Response Time: | 10 ms |
- For Power conversion devices (UPS, inverter, rectifiers, drives), Dc systems (dc common bus, dc injection braking), Battery protection application (energy storage systems), Electric vehicle charging stations, Heaters and power supplies
- Best in class dc performance
- Extremely current limiting
- Superior cycling capability
- Visual and optional microswitch fuse blown indication
- Low watt-loss design
- Compliance with US and Canadian requirements
- Fast-acting Class aR performance
- UL 248-13 Recognized|C-UR-US|IEC 60269-4|CCC|RoHS Compliant|REACH
