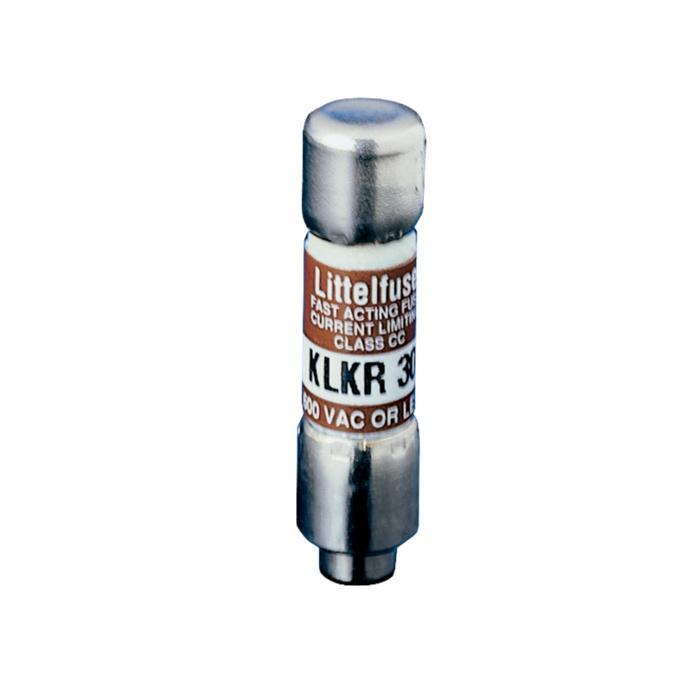

Littelfuse® POWR-GARD® KLKR010 High Speed North American Style Fast Acting Fuse, 10 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Sku #07945826065
MFG #KLKR010
Attributes
| Type: | High Speed North American Style |
| Indicating/Non-Indicating: | Non-Indicating |
| Amperage Rating: | 10 A |
| Series: | KLKR |
| Rejection/Non-Rejection: | Rejection |
| Voltage Rating: | 600 V AC/300 V DC |
- UL 248-8|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- General Purpose Protections Equipment Requiring Fast Overload Protection Applications
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- Provide superior protection in a fraction of the space required by other fuse classes
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Nickel plated bronze cap
- 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
