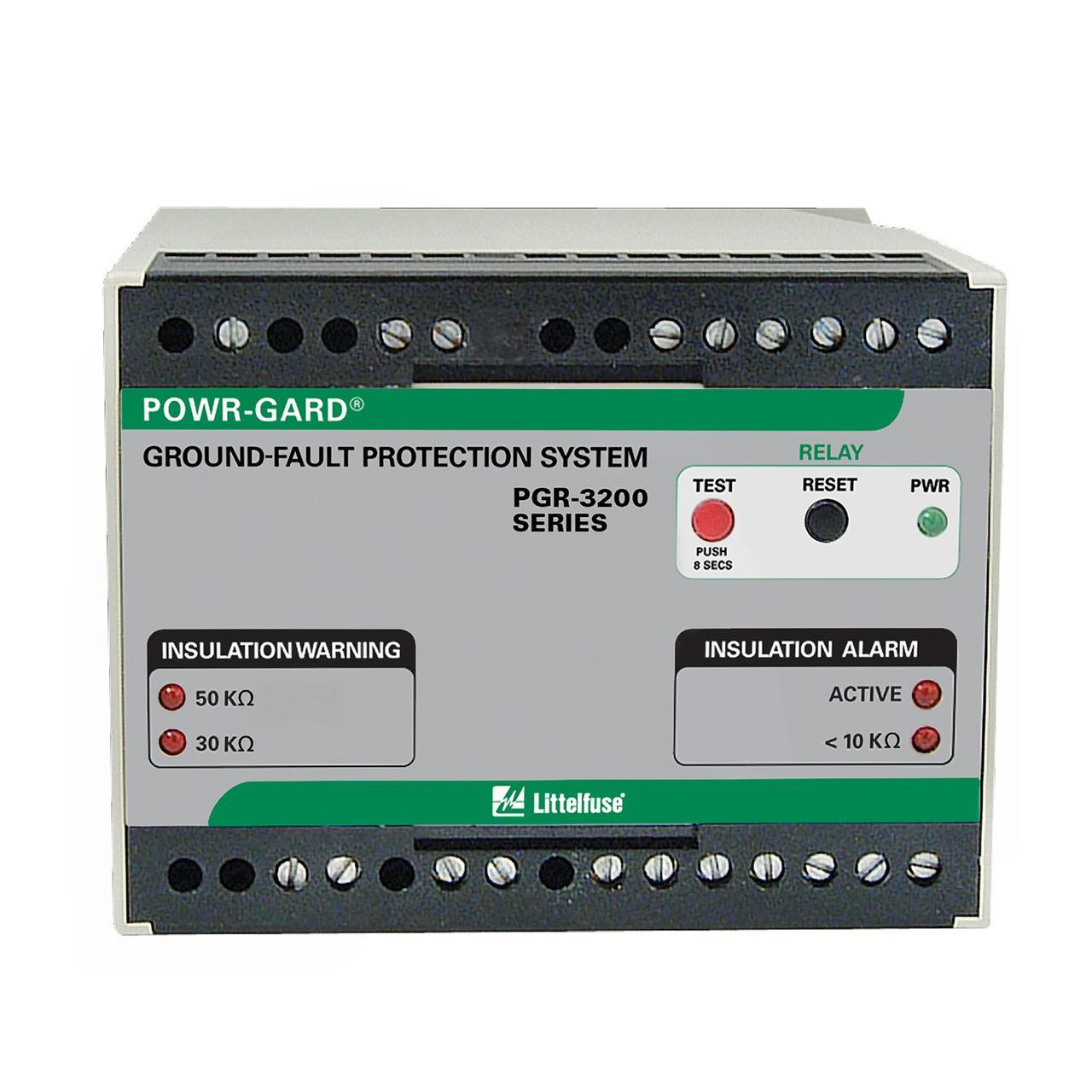

Littelfuse® POWR-GARD® PGR-3200 Insulation Monitor, 240 V AC, 0 to 1 mA Analog Output, 2 Form C Output Contact, 22 to 12 AWG Wire Clamping Terminal, DIN Rail Mount
Sku #07945817730
MFG #PGR-3200
Attributes
| Series: | PGR-3200 |
| Analog Output: | 0 to 1 mA |
| Mounting Type: | DIN Rail |
| Voltage Rating: | 240 V AC |
| Specifications: | 2 Form C Output Contact, 22 to 12 AWG Wire Clamping Terminal |
| Dimensions: | 3 in H x 3.9 in W x 4.5 in D |
- Form C output contact for alarming when the insulation resistance is below 50 kOhm
- Form C output contact for tripping when the insulation resistance is below 10 kOhm
- Analog output (0 to 1 mA) provides means for connecting to an optional meter (PGA-0510) or control system
- DIN rail or surface mountable allows flexibility in panel installation
- Local test button, local and remote reset button
- Non-fail safe contact operating mode
- Flexible options for ease of installation
- UL File No. E183688|UL 508|cULus Listed|NEC Article 250.21(B)|CEC Part 1, Section 10-106 (2)|FCC Approved
