Sku #07847790612
MFG #G5362-E
Attributes

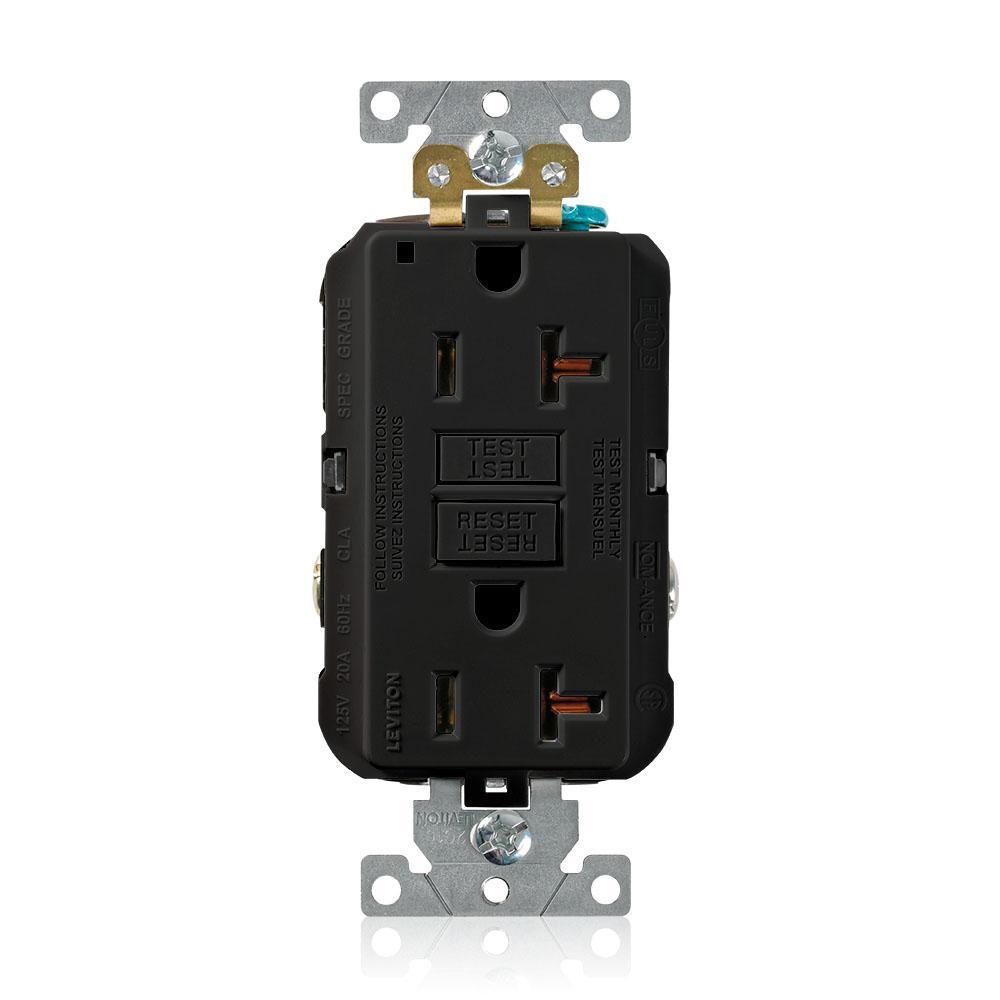

| Type: | Duplex Extra Heavy Duty Self-Test Self-Grounding Non-Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Series: | G5362 |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Commercial Office Spaces, Educational Facilities, Hospitality Venues and Multiple Dwelling Units Applications
- Wraparound steel strap provides superior durability in abusive environments
- On tamper-resistant versions, safety shutter mechanism provides compliance with NEC® Article 406.12 requirements
- Improved strap design provides greater support, even with ears removed
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Fed Spec rated for the most demanding environments
- Impact and chemical-resistant smooth PBT face for longer service life
- Slim profile provides 25% more room for wiring in wall box
- Patented SmartlockPro® protection detects and prevents against line-load reversal miswiring and prevents resetting when ground fault protection has been lost
- ANSI C-73|CSA C22.2 File No. 42/144|Federal Specification W-C-596|NEMA WD-1/WD-6|NOM ANCE|UL 498|UL 94 V-0 Flammability Rating|UL 943
