Sku #07847790265
MFG #6AUJK-CL6
Attributes
| Type: | Component Rated Standard |
| Module Type: | Cat 6a |
| Material: | Die Cast Zinc |
| Series: | GreenPack® |
| Mounting Type: | Flush |
| Color: | Blue |

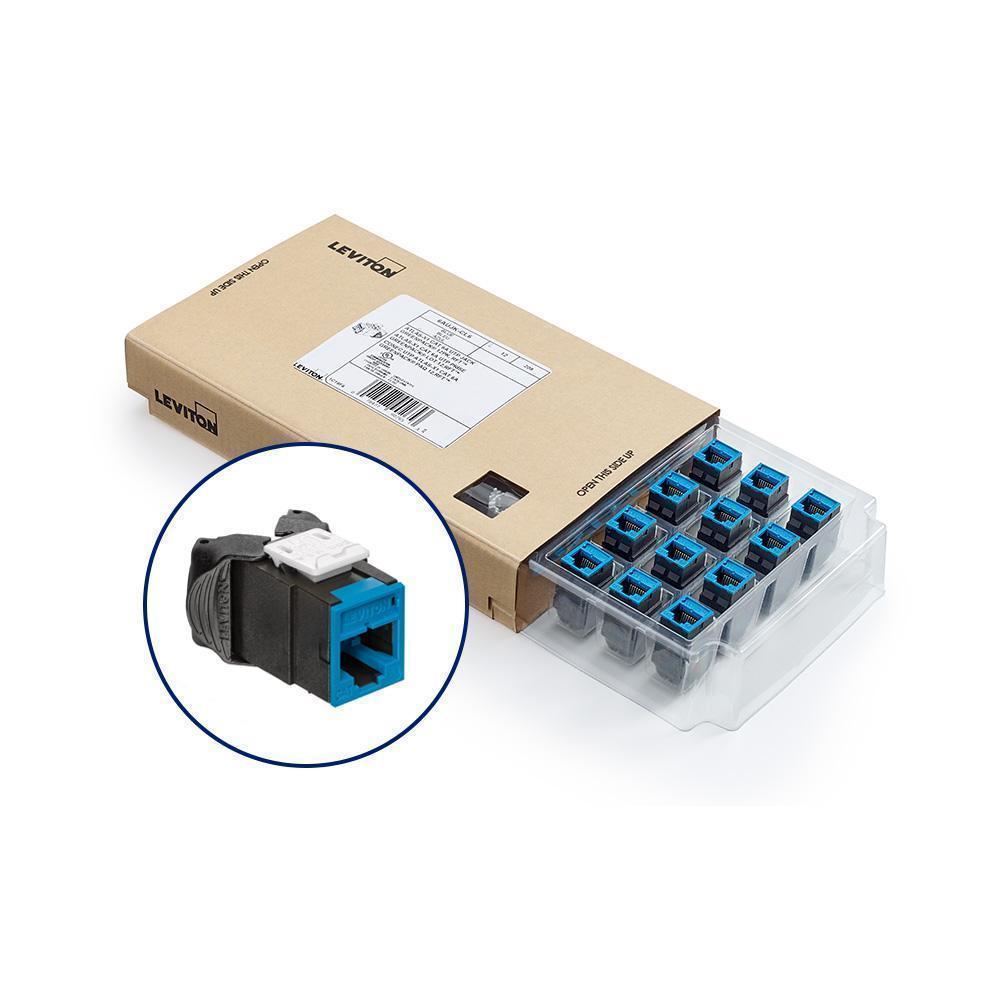

- (12) Jacks and (12) Wire Managers
- For the most demanding mission critical network applications
- Independently tested and guaranteed to exceed all component, permanent link and channel margins
- Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
- For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
- Unique design supports tool-free termination/re-termination and requires no specialized termination tool
- Short jack design supports a wider range of applications (e.g.. shallow boxes, enclosures, bend radius, etc.)
- Terminates from 26 to 22 AWG solid or stranded conductors for use on various cable types
- Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug mating cycles to ensure system longevity
- Jack with internal shutter protects against dust and debris
- Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
- Tine geometry prevents arcing damage where plug and jack make contact
- Innovative wire manager and door release levers support quick, repeatable terminations
- Each jack includes interchangeable icons (voice, data, AV and blank), color coded to match the jack face
- Unified form factor and termination method
- ANSI/TIA-568.2-D|ANSI/TIA-1096-A|cULus Listed|UL 2043 Plenum Certified|IEC 11801-1|IEC 60603-7|IEC 60512-5-2|IEC 60512-99-001|IEC 60512-9-3|IEEE 802.3af|IEEE 802.3at|IEEE 802.3bt|UL 94 V-0 Flammability Rating
- Limited
