Sku #07847789999
MFG #L5362-GY
Attributes

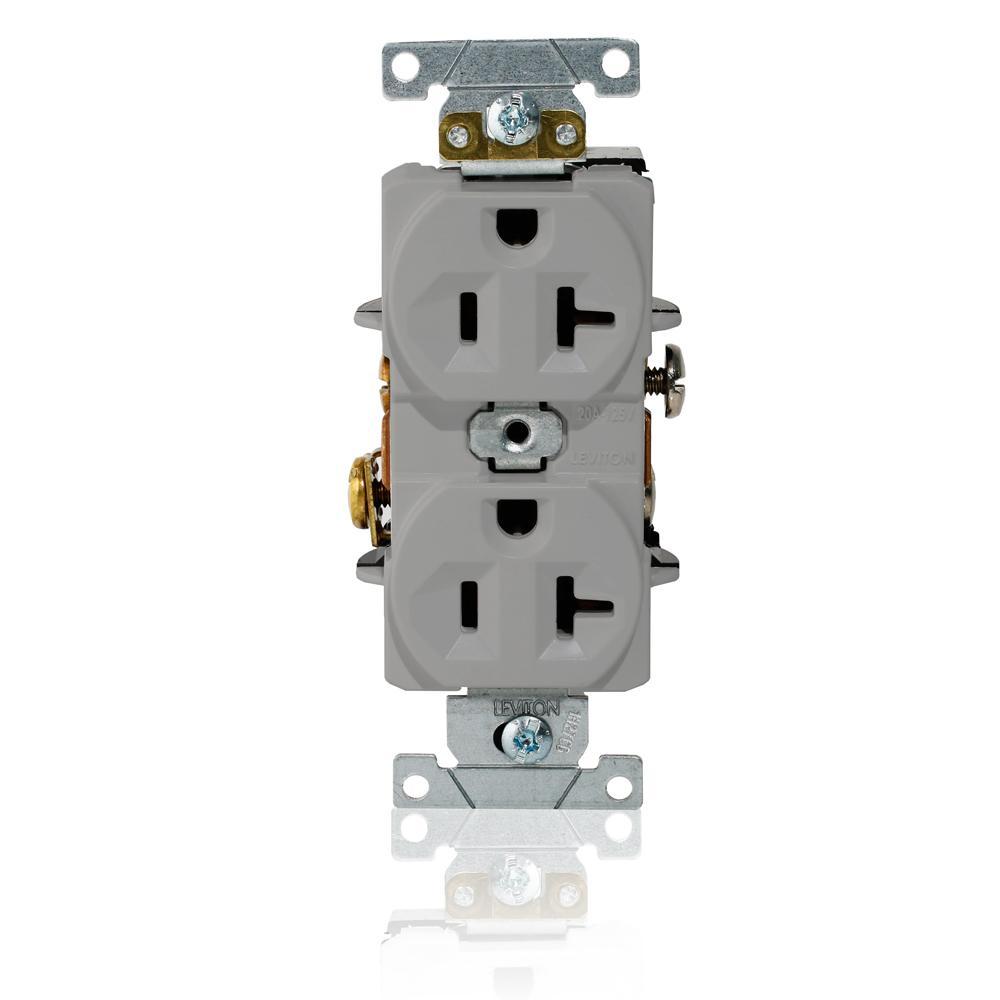

| Type: | Duplex Heavy Duty Indented Face Self-Grounding Standard |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Series: | L5362 |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Wide receptacle face shelf provides exceptional support to the wallplate or box cover
- Body and face made of impact-resistant advanced engineering polymer for extreme durability
- Universal strap design provides ample support for electrical box installations and includes multiple break-off tabs to eliminate interference with virtually any cover or wallplate
- 1-piece equipment ground system provides more reliable continuity to ground can be back or side wired
- Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
- External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
- Molded in ribs prevent terminal screws from making contact with wall box
- ANSI C-73|cULus Listed|CSA C22.2 No. 42|UL 498|Federal Spec WC-596|UL 94 V-0 Flammability Rated|NOM-ANCE|NEMA WD-1|NEMA WD-6
- Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilities
