Sku #07847789630
MFG #T8300-T
Attributes

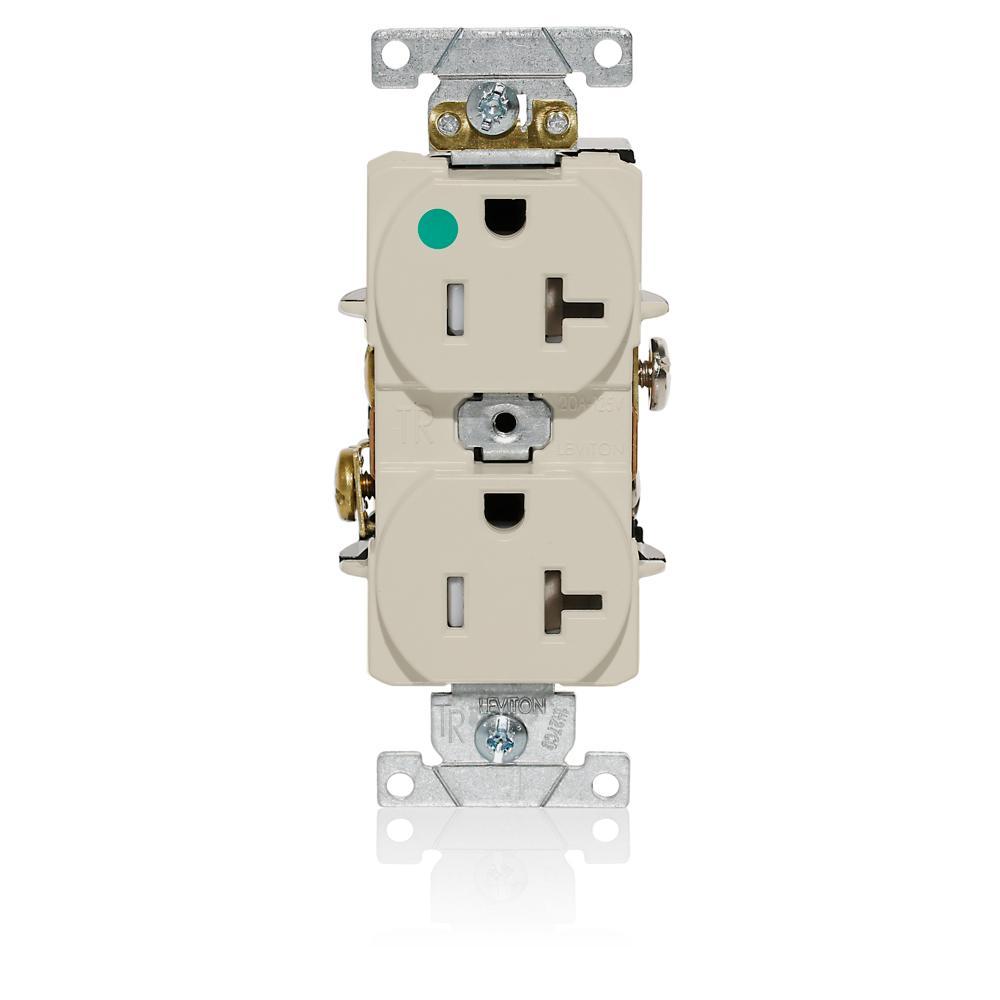

| Type: | Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Series: | T8300 |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Wide receptacle face shelf provides exceptional support to the wallplate or box cover
- Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provides compliance with NEC® Article 406 for tamper-resistant receptacles
- Body and face made of impact-resistant advanced engineering polymer for extreme durability
- Universal strap design provides ample support for electrical box installations and includes multiple break-off tabs to eliminate interference with virtually any cover or wallplate
- Ground and contact terminal isolated from mounting strap to prevent system noise interference
- Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
- External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
- Molded in ribs prevent terminal screws from making contact with wall box
- Hospital, Healthcare Facilities, Educational Buildings/Dorms and Institutional Buildings
- ANSI C-73|cULus Listed|CSA C22.2 No. 42|UL 498|Federal Spec WC-596|UL 94 V-0 Flammability Rated|NOM-ANCE|NEMA WD-1|NEMA WD-6|NEC 406
