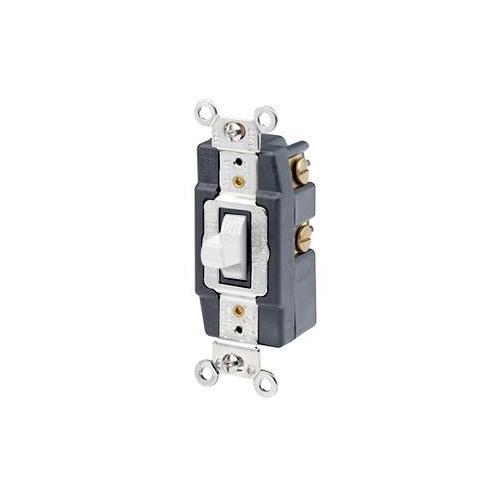

Sku #07847788061
MFG #1285-W
Attributes
| Type: | Grounding |
| Amperage Rating: | 20 A |
| Contact Configuration: | SPDT |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 800 W, 1000 VA |
| Contact Rating: | 1 hp at 120 V AC, 2 hp at 240 V AC |
- Commercial Applications
- Positive switching action with center OFF position
- Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
- Clamp type terminals accept up to 10 AWG copper wire
- Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
- ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
