Sku #07847783074
MFG #21254
Attributes

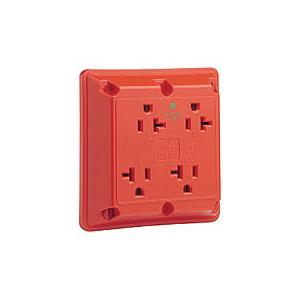

| Type: | 1-Phase 4-in-1 Extra Heavy Duty Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face, easy-to clean surface
- Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- #8 terminal screws accept up to no 12 AWG solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield wall design protects ground connection from contact with live circuit conductors
- A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
- Convenient built-in strip gauge
- Wallbox mounting
- Grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Industrial series extra heavy duty specification grade
- Galvanized steel strap
- 4-in-1 receptacle
- Screw terminal connection
- 14 to 12 AWG wire terminal
- NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
