Sku #07847780870
MFG #1257-L
Attributes

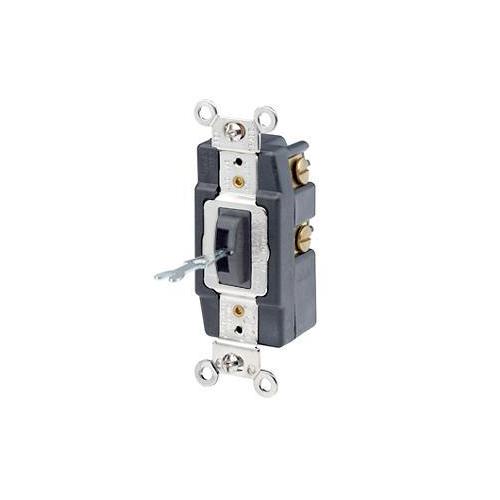

| Type: | Grounding Momentary Contact |
| Amperage Rating: | 20 A |
| Contact Configuration: | SPDT |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1/2 hp |
| Contact Rating: | 1 hp 120 V AC, 2 hp 240 V AC |
- Positive switching action with center OFF position
- Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
- Clamp type terminals accept up to 10 AWG copper wire
- Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
- AC quiet switch
- Self-grounding
- Tamper resistant
- #8-32 brass terminal screws
- 0.048 in THK galvanized steel strap
- Polycarbonate toggle, thermoplastic base and cover
- 1 hp at 120 VAC, 2 hp at 240/277 VAC power rating
- Key locking toggle
- Box mounting
- ANSI C73|UL 20|Federal Specification WS896E File No. E7458|CSA C22.2 No. 111 File No. 152105|NOM 057|NEMA WD1/WD6|UL94 V-2 Flammability Rating
- Commercial Applications
