Sku #07847780332

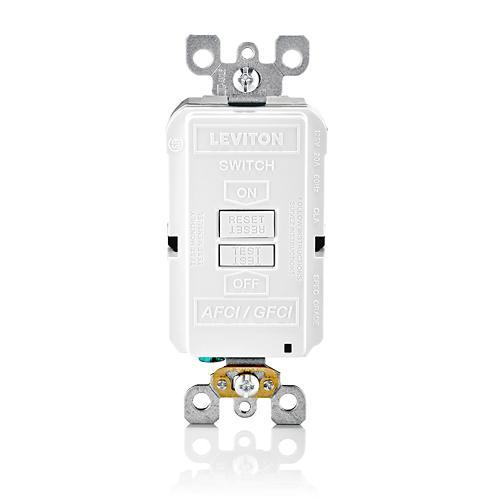

MFG #AGRBF-W
Attributes
| Type: | Dual Function Feed-Through Monochromatic Self-Test |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- May be used for outlet branch circuits where AFCI protection is desired but is located where an outlet is not needed
- Ideal for installing in locations to make AFCI protection readily accessible per NEC® requirements
- May be used on circuits feeding lighting loads as well as other loads such as smoke detectors where a receptacle is not used
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- On initial power up, tests the GFCI circuit within 3 s
- Patented lockout action prevents reset if the device is damaged
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- TEST and RESET buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired
- 1-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- https://www.youtube.com/embed/WJQ9RT-8XOk
- Test and Reset Buttons, Mounting Screws, Washers, Instruction Sheets, Self-Ground Clip, Less Wallplate and Wallplate Screws
- For all Decora® devices and wallplates
- UL 943 E48360|UL1699.A E342815|ANSI C-73|CSA-C22.2 No. 270-14|CSA-C22.2 No. 144.1-06: File LR-57811|NOM Approved|NEMA WD-6
- 2 years Limited
