Sku #07847772465

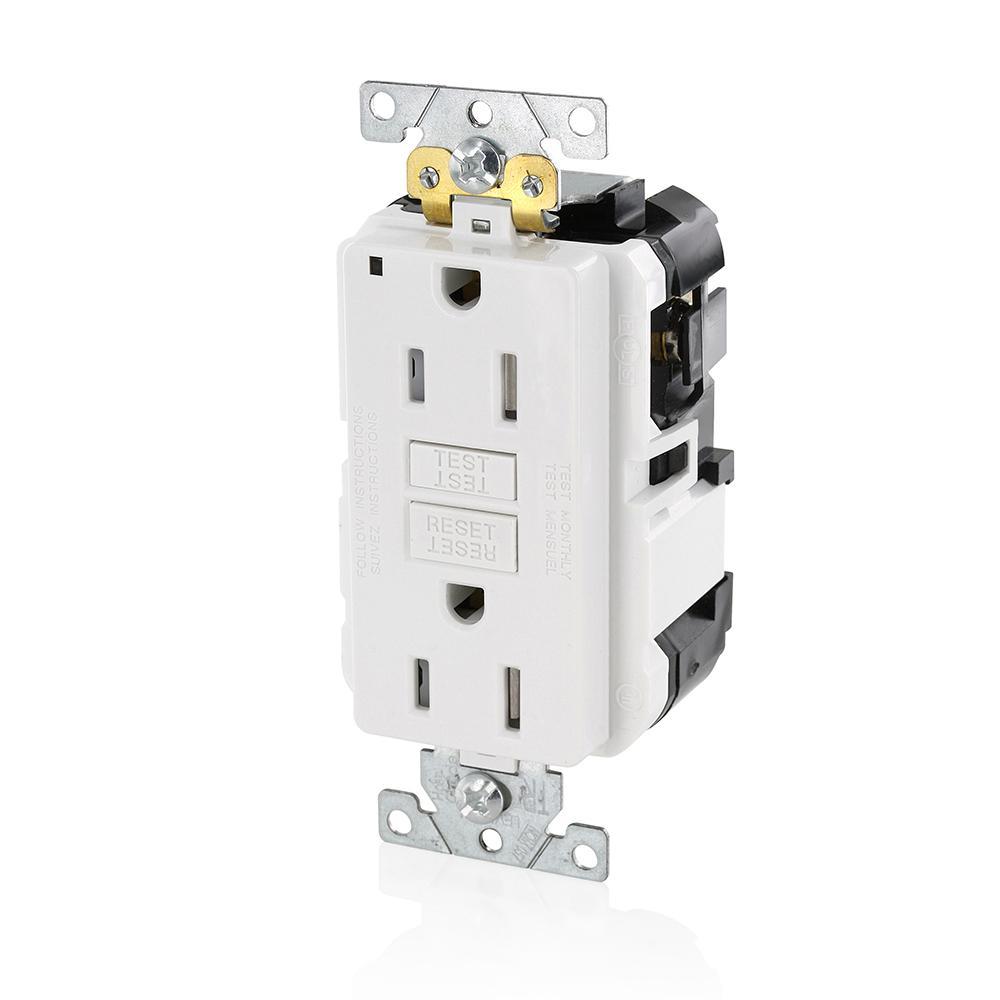

MFG #MGFT1-W
Attributes
| Type: | Extra Heavy Duty Self-Test Self-Grounding |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Extra Heavy Duty Industrial Applications
- ANCI C-73|UL 943|UL 498|cULus Listed|CSA C22.2 File No. 42|CSA File No. 144|Federal Specification W-C-59|NOM-ANCE Certified|NEMA WD-1/WD-6
- Smooth not textured PBT face cover facilitates cleaning and provides significant impact-resistant and protection from harsh chemicals
- Dual function status indicator light provides simple, intuitive feedback on power and protection status as well as correct wiring
- Wiring clamp provides for back or Side wiring of ground terminal
- Wraparound steel strap provides superior structural integrity, especially in hard-use environments
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Removable safety covers on feed-through terminals provide added safety
- Leviton® patented reset lockout
- Slim profile provides 25% more room in the wall box
- Improved strap design provides greater support, even with ears removed
- Line terminal clamps initially held open to expedite first time wiring
- Only modular GFCI currently available on the market with feed-through terminals for downstream protection
- All modules have a circuit id label for ease of identification
- Solid brass locking pins for strong, secure connection between receptacle and wiring module
- Used with Leviton® MSTWL series wiring modules
- Wallplate and wiring module not included
- 2 kA short circuit current rating
- 20 A feed-through
- Rated V-0 per UL94 flammability
- PBT face, plated steel terminal screws (load side), brass terminal clamp, line contacts and ground clip, galvanized steel strap
- Ratings are permanently marked on device
