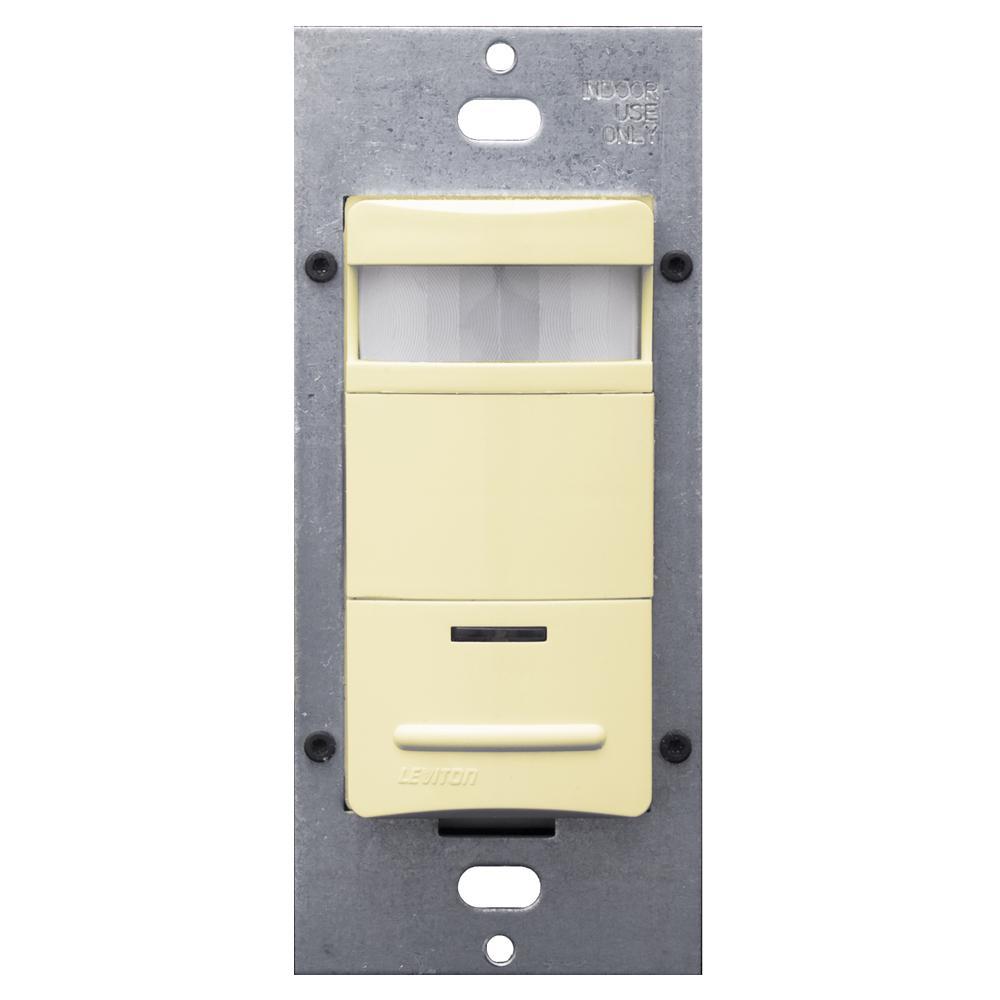

Sku #07847770528
MFG #ODS06-IDI
Attributes
| Type: | 1-Pole Low-Profile |
| Power Rating: | 600 W, 800 VA, 1500 VA, 1/4 hp |
| Coverage: | 1600 sq-ft |
| Voltage Rating: | 120/230/277 V AC |
| Sensor Type: | PIR |
| Viewing Angle: | 180 deg |
- Small Office, Lounges, Conference Rooms and Classrooms
- Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
- Low profile design eliminates obtrusive appearance
- Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- 180 deg field of view provides approximately 160 sq-ft of coverage
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Two dual element PIR sensors used to widen detection range
- Vandal resistant PIR lens
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for ca title 24 energy savings
- Time delay adjustment for delayed OFF time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
- Vacancy confirmation when the time out expires and the lights turns OFF, a 30 sec vacancy confirmation exists to turn the lights back ON
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- No neutral design is optional for retrofit applications
- 1-unit can be used for 120 to 277 VAC lighting, compatible with LED drivers, electronic and magnetic ballasts
- Single relay, photocell controlled
- https://www.youtube.com/embed/WJQ9RT-8XOk
- UL/cULus Listed|FCC Approve|NOM Certified|ASHRAE 90.1|Title 20 Compliant
