Sku #07847763957
MFG #71D12
Attributes

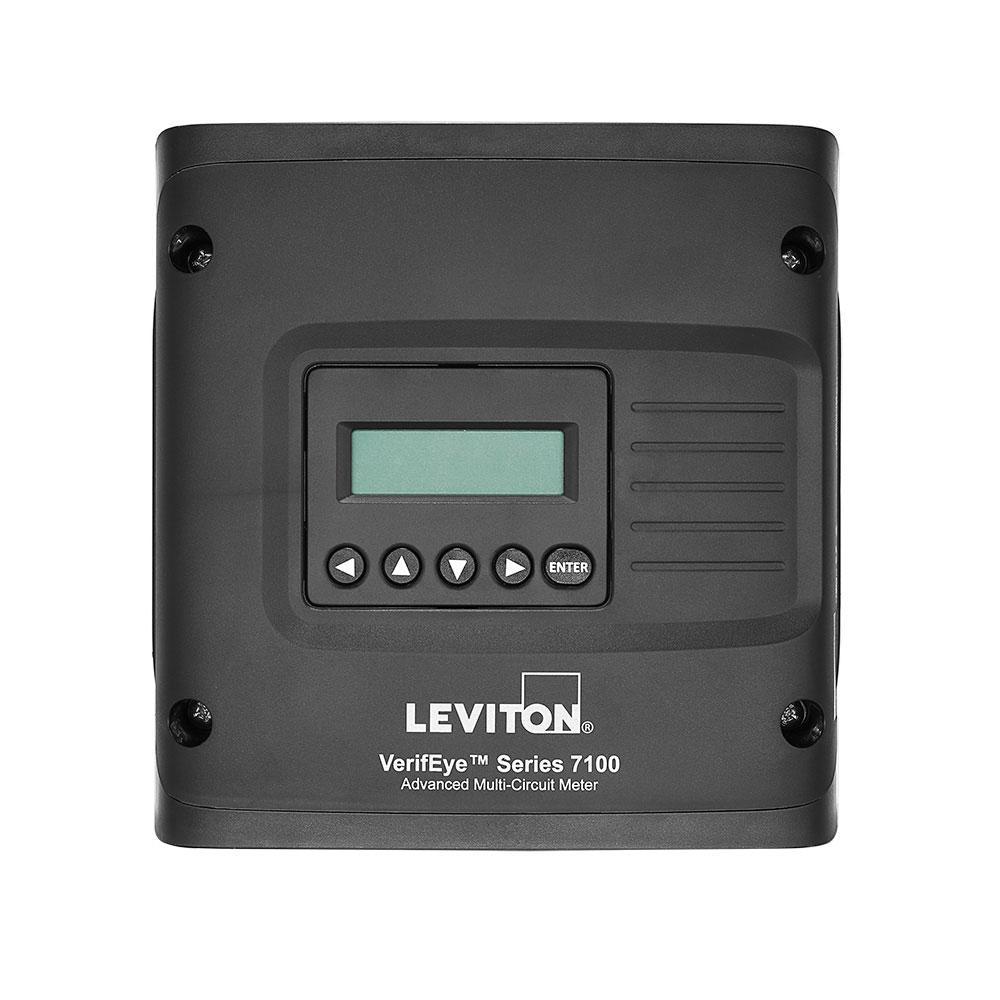

| Type: | Embedded Electric Submeter |
| Voltage Rating: | 90 to 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | 7100 |
| Amperage Rating: | 5 to 4000 A |
| Accuracy: | 0.2 % |
- 12 independent, user defined input
- 12 individual panel circuit
- Four three-phase load
- 200 to 400A CTs
- User configured combination
- Line powered from 90 to 600 V, phase to phase
- ANSI and IEC metering system accuracy including branch CTs
- Supports split core and rogowski coil CTs
- Meter board feature - easy access terminal for CT wiring, removable connector
- Easily route cable and view LEDs from any angle
- Reports volt, amp, power, demand and energy for each circuit
- Configurable for four individual load, which can be a combination of single-phase, two-phase or three-phase circuit
- Please consult factory for capacity limitation for any other configuration
- User configurable alarm threshold register for improved load management
- Selectable phase orientation and number of circuit
- https://youtu.be/KN1an_N4jA8
- Commercial, Industrial, Retail, Higher Education/Campuses, REIT Management, Data Center, Tenant Submetering and Indoor Applications
- ANSI C12.20 Class 0.2|CE EN 61000-6-4 Class A|IEC Standard|NIST Traceable Calibration|RoHS Compliant|UL Listed|UL Recognized
