Sku #07847759837
MFG #2O208-4W
Attributes

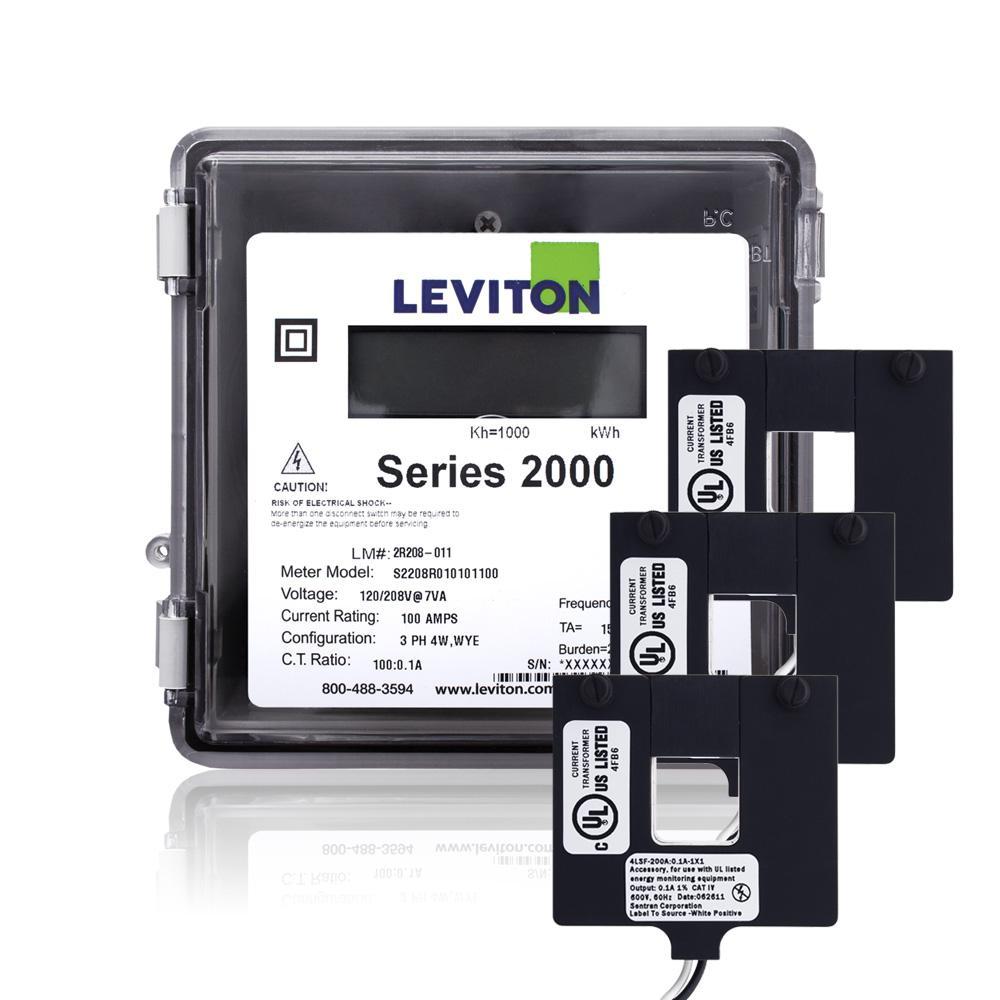

| Type: | 3-Phase 4-Wire Surface Mount Split |
| Voltage Rating: | 120/208 V AC |
| Display Type: | LCD |
| Series: | 2000 |
| Amperage Rating: | 400 A |
| Communication: | Isolated Pulse Output |
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- 18 to 14 AWG terminal accommodation
- https://www.youtube.com/embed/wB2ItwsUkV4
- Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates and Outdoor Applications
- (1) Meter, (1) Enclosure and (3) Split Core Current Transformers
- ANSI C12.1;UL and cUL listed
- 10 Years
