Sku #07847759755
MFG #1O240-2W
Attributes
| Type: | 1-Phase 3-Wire Surface Mount Split |
| Voltage Rating: | 120/240 V AC |
| Display Type: | LCD |
| Series: | 1000 |
| Amperage Rating: | 200 A |
| Communication: | Isolated Pulse Output |
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- Enclosure is NEMA 4X outdoor rated
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- Gray color
- 18 to 14 AWG terminal accommodation
- https://www.youtube.com/embed/iRbt-jJzk_I
- ANSI C12.1|cUL Listed|UL Listed

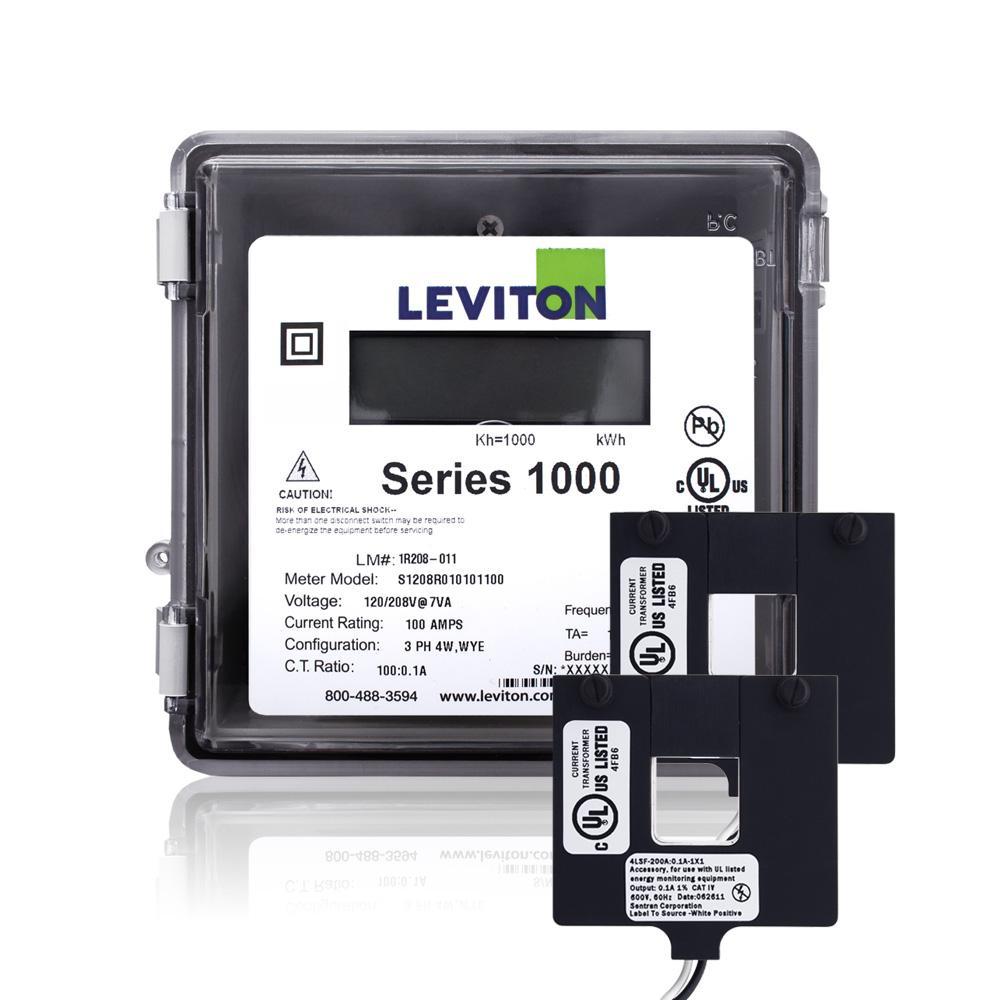

- (1) Meter, (1) Enclosure and (2) Split Core Current Transformers
- Commercial, Institutional, Industrial, Government and Outdoor Applications
- 10 years
