Sku #07847758757

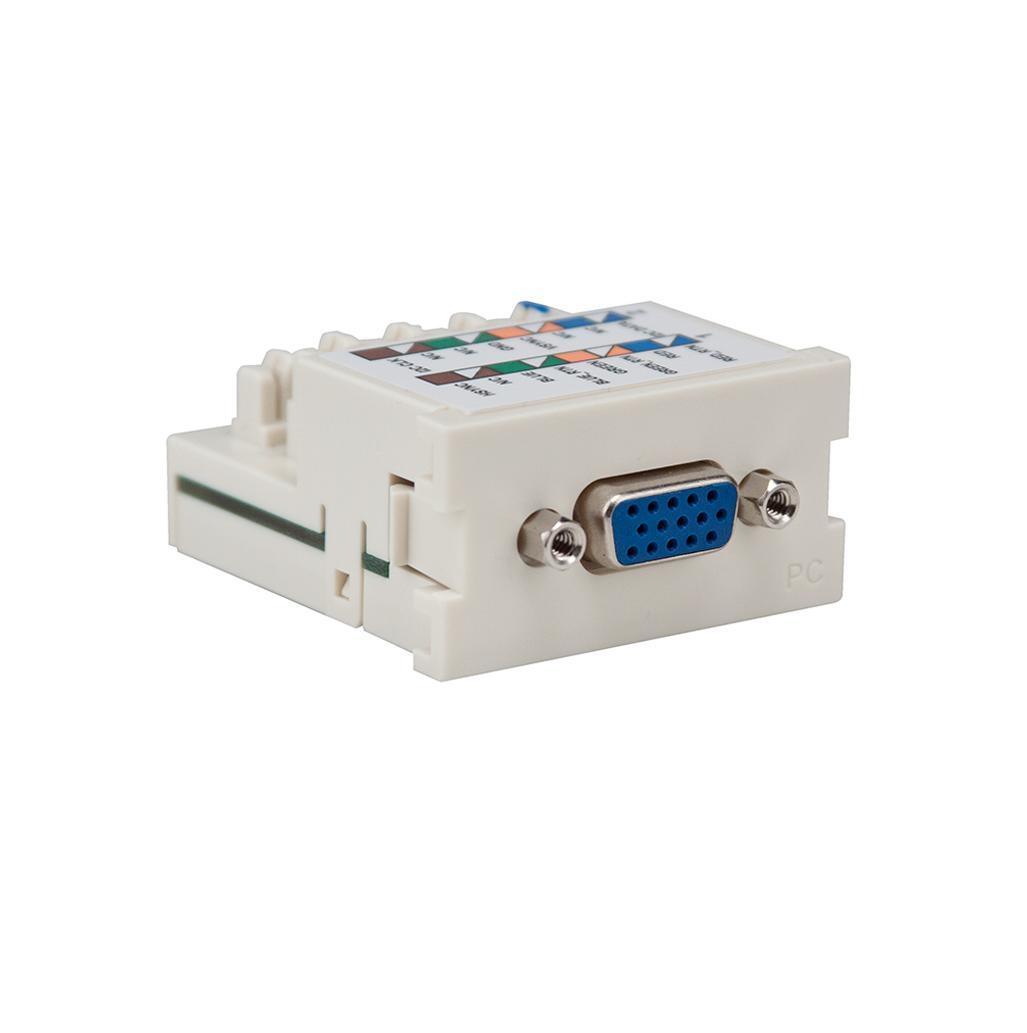

MFG #41295-VPT
Attributes
| Type: | PC End |
| Cable Type: | UTP/Shielded Twisted-Pair |
| Mounting Type: | Snap-Fit |
| Connector Type: | Female |
| Impedance: | 75 Ohm |
| Termination Type: | 110 IDC |
- cULus Listed|CAN/CSA C22.2 No. 182.4-M90|TIA/EIA-568-B|UL 1863|UL94 V-0 Flammability Rating
- Commercial Applications
- PC and monitor modules must be used as a set (PC and monitor modules)
- Modules must be installed in a Leviton® MOS wallplate
- Modules are 1-unit high
- VGA modules can be mixed with other MOS modules in the same wallplate
- Two twisted pair cables (CAT 5e or higher, UTP or shielded) required for each set of VGA modules
- Not compatible with MOS surface mount boxes
- Provides a point to point VGA connection over twisted pair cabling (UTP or shielded)
- Passive modules compensate for the impedance difference between 75 Ohm unbalanced video signal and the 100 Ohm balanced cabling
- Display data channel (DDC) signals included, which allow the PC to detect the display capabilities
- Twisted pair cabling can be cut to length in the field
- Twisted pair cabling provides a migration path for future digital signals
- Fast and easy cable termination using color coded 110 style IDC connectors
