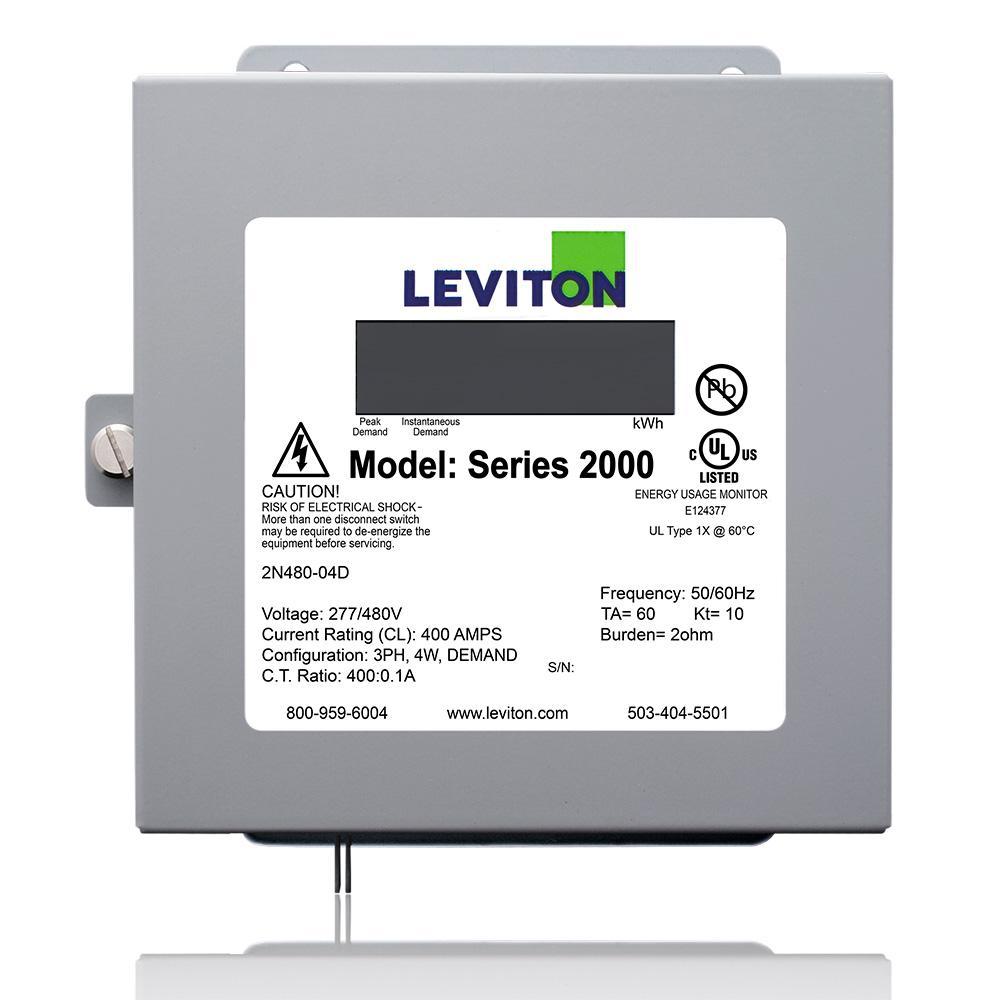

Sku #07847755585
MFG #2N480-4D
Attributes
| Type: | 3-Phase 4-Wire 3-Element |
| Voltage Rating: | 277/480 V AC |
| Display Type: | LCD |
| Series: | 2000 |
| Amperage Rating: | 400 A |
| Communication: | Isolated Pulse Output |
- Equipped with an isolated pulse output channel
- Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers (CTs) that conform to all applicable ANSI requirements or 1% accuracy split-core CTs
- Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- https://www.youtube.com/embed/iRbt-jJzk_I
- Commercial, Institutional, Industrial, Indoor, Load Profiling and Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement and Verification, Energy Conservation and Cost Reduction, Green Building Initiatives and Government Mandates Applications
- ANSI C12.1|ASHRAE 90.1|cUL Listed|Title 24 Compliant|UL 916
