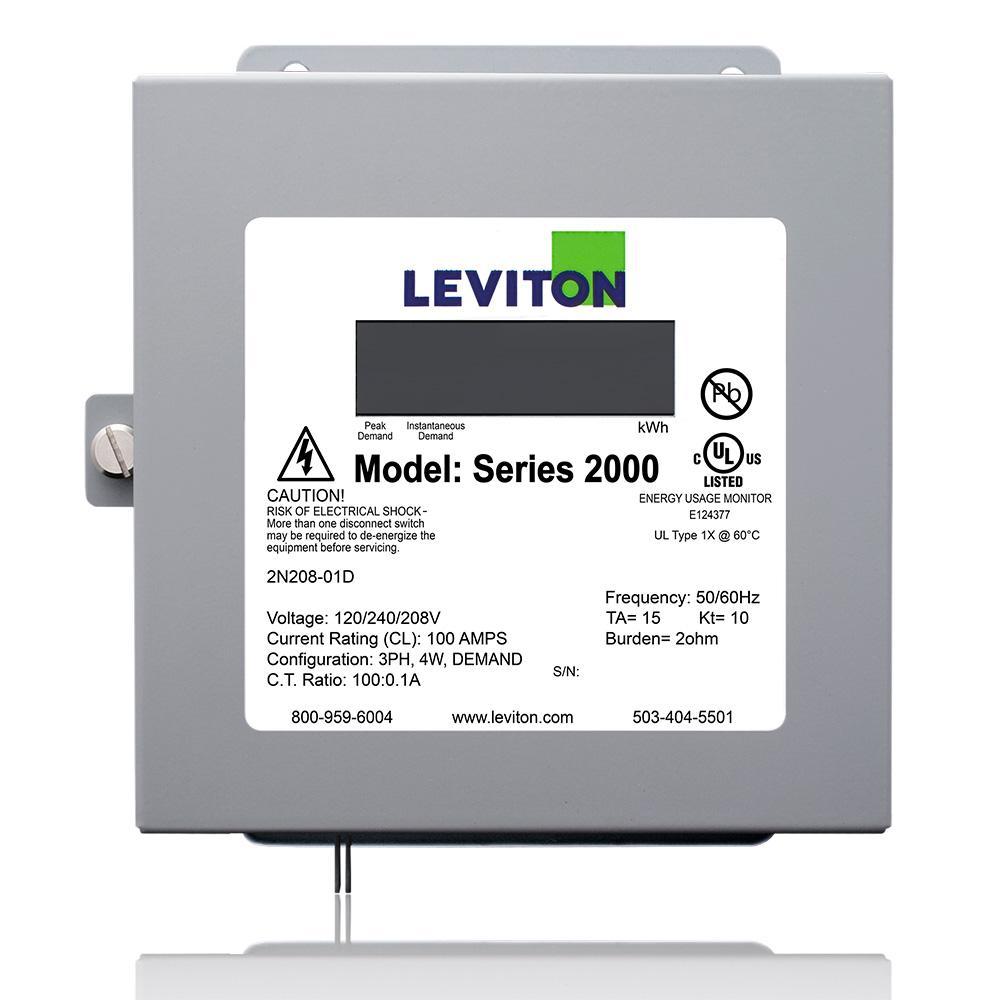

Sku #07847755547
MFG #2N208-1D
Attributes
| Type: | 3-Phase 4-Wire 3-Element Surface Mount |
| Voltage Rating: | 120/208 V AC |
| Display Type: | LCD |
| Series: | 2000 |
| Amperage Rating: | 100 A |
| Communication: | Isolated Pulse Output |
- Measures kWh
- Utilizes either revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- Line to line
- Gray color
- https://www.youtube.com/embed/iRbt-jJzk_I
- ANSI C12.1
- Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates and Indoor Applications
