Sku #07847754464

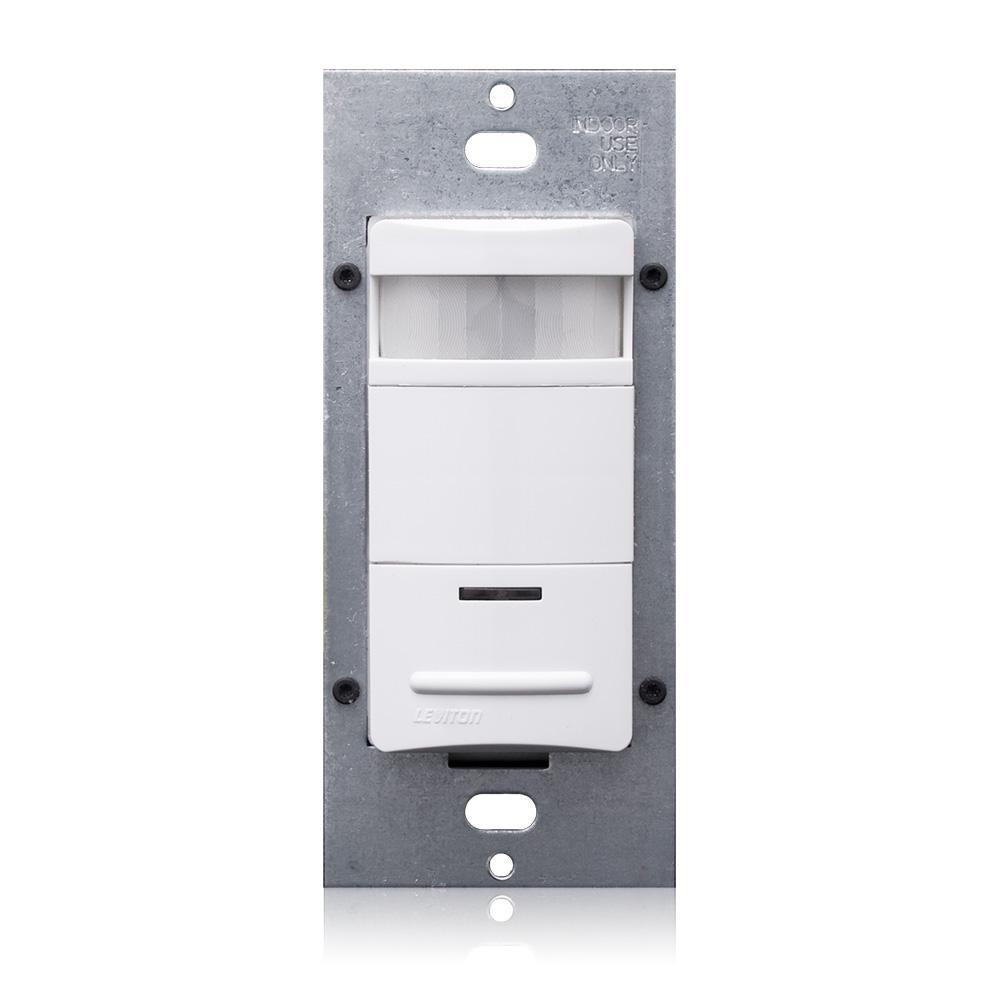

MFG #MDS15-IDW
Attributes
| Type: | 1-Pole Low-Profile Photocell Controlled Single Relay |
| Power Rating: | 100/277 mW |
| Coverage: | 2100 sq-ft |
| Voltage Rating: | 120/230/277 V AC |
| Sensor Type: | PIR |
| Viewing Angle: | 180 deg |
- Fits in standard wallbox and replaces 1-pole wall switch, ground connection required, gangable with other units
- Low profile design eliminates obtrusive scanning device look, beep warn unit beeps 3 times after delayed OFF time expires, then waits 10 sec before turning lights OFF
- Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- Two dual element PIR sensors used to widen detection range
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal resistant PIR lens, exclusive Leviton® high inrush stability(HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Lev-Lok® makes installation and replacement simple with latch and lock system which streamlines installation and reduces costs
- The Lev-Lok® wiring module is keyed so that it cannot be installed incorrectly, saving time during installation and making maintenance quicker, safer and easier
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
- Red LED indicator light flashes when sensor detects motion to verify detection is active, no neutral design is optional for retrofit applications
- Time delay in adapting mode, the time delay can be configured from 30 sec (test mode), 5, 10 and 20 min in non-adapting mode, the delay can be configured from 5, 10, 20 and 30 min
- Light sensor adjustable ambient light override ranges from approximately 20 to 5000+ LUX to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings
- Light sensor enables the load hold OFF feature once level has been set, relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
- Self-adjusting delayed OFF time interval compensates for real time occupancy patterns, preventing unnecessary ON/OFF switching
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec vacancy confirmation exists to turn the relays back ON
- False detection circuitry
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Additional manual service switch provided for installer to force lights to hold OFF or hold-ON during installation
- https://www.youtube.com/embed/lWSqZ3i3_Ug
- Small Offices, Heavier Loads, Private Restrooms, Lounges, Storage Areas, Classrooms, Conference Rooms and Commercial Applications
- UL/cUL Listed|CEC Title 24 Compliant|FCC/NOM Certified
