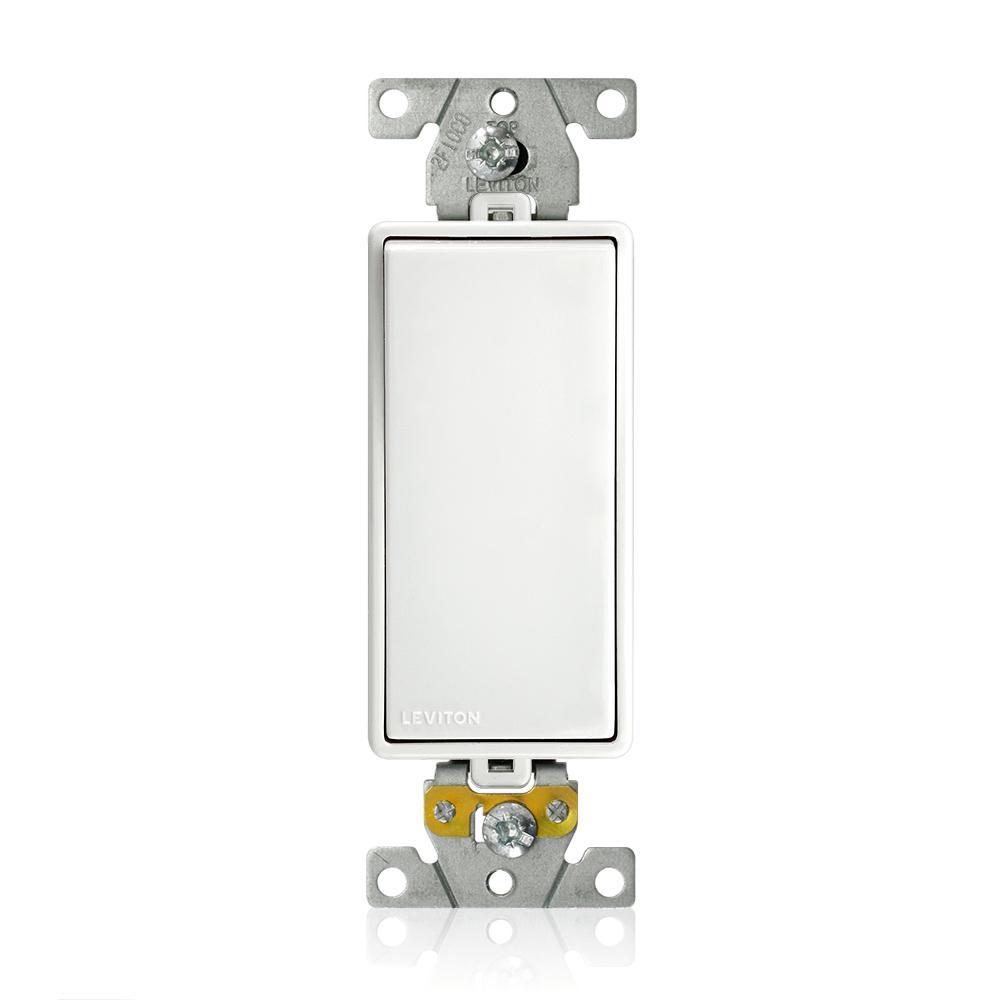

Sku #07847749542
MFG #M5621-W
Attributes
| Type: | Framed Heavy Duty Self-Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 1 |
| Voltage Rating: | 125 V AC |
| Power Rating: | 1 hp, 2 hp |
| Terminal Type: | Modular |
- Heavy gauge, wraparound steel strap provides superior strength
- Solid brass locking pins for strong, secure connection and optimum electrical performance
- Illuminated versions provide a glow when switch is in the OFF position
- Brass self-grounding clip is permanently staked on for reliable bonding to the ground system
- Two latches secure the wiring module in place for added security
- Wiring module is keyed to prevent miswiring
- Pre-stripped leads make it fast and easy to connect to building wiring
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
- Commercial, Educational, Institutional, Industrial, Office and Hospitality Applications
- UL 20|CSA C22.2 No. 111|cULus E7458|NEMA WD-1/WD-6|UL94 V-2 Flammability Rated|ANSI C-73
