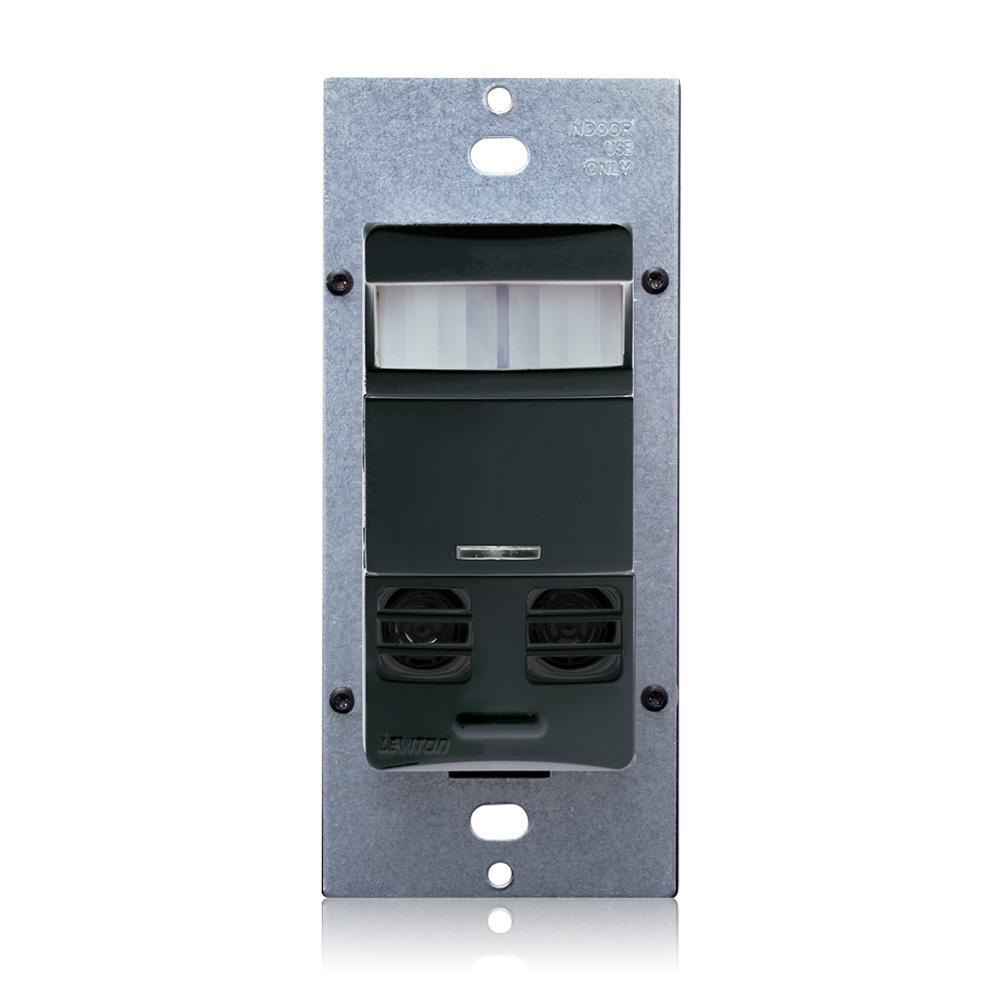

Sku #07847748701
MFG #OSSMT-GDE
Attributes
| Type: | 1-Pole Field Configurable Self Adjusting |
| Power Rating: | 70/110 mW |
| Coverage: | 2400 sq-ft |
| Voltage Rating: | 120/230/277/347 V AC |
| Sensor Type: | Multi-Technology/PIR/Ultrasonic |
| Viewing Angle: | 180 deg |
- Fast, simple installation fits in a standard wallbox and replaces a 1-pole wall switch
- Sensor can be ganged together with other units in a multiple-switch wallplate
- Low profile design eliminates obtrusive scanning-device look
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal resistant PIR lens
- Adjustable horizontal field-of-view (PIR may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens), no masking required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
- To comply with CED title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR
- The delayed OFF time is preset at 30 min in the auto-adapting mode, the LED will flash when the adjusting knob is set to the indicated time value
- Ambient light recognition integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
- Self-adaptive technology callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec (OSSMT-G) or 40 sec (OSSMT-M) vacancy confirmation exists to turn the relays back ON
- False detection circuitry
- Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
- Elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- https://www.youtube.com/embed/vkM-Ppc9l-s
- Retrofit, Private, Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching and Commercial Applications
- ETL/cETL/UL/cUL Listed|CSA/FCC Certified|CEC Title 24 Compliant|NAFTA CF434
