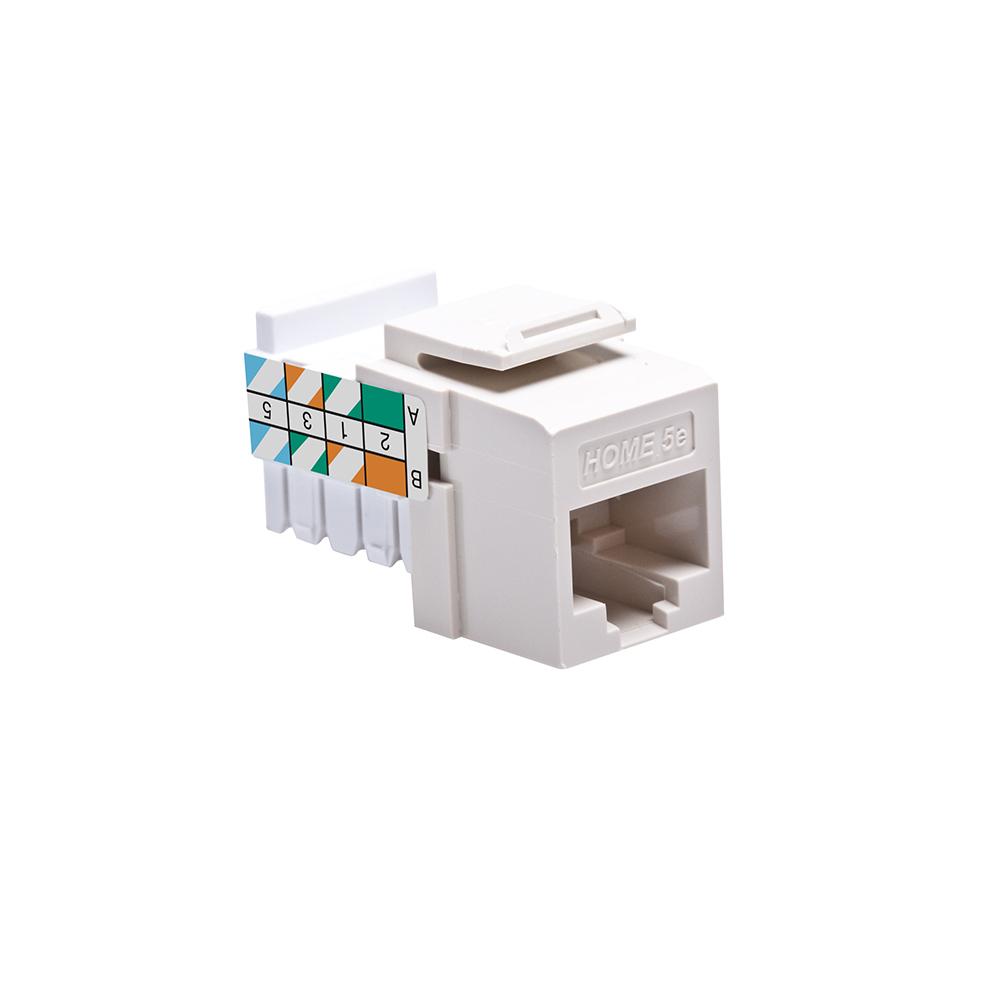

- Use in any QuickPort® housing to support Cat 5e UTP connectivity in surface mount, flush mount or modular furniture outlets or patch panels and patch blocks
- Can be used in conjunction with other QuickPort® snap-in modules for voice/data and video applications over UTP, coax and fiber
- To ID ports, use different colored modules for each application
- Robust 1-piece lead frame design
- Narrow body connector allows high port density in a small area
- Performance supports high megabit applications
- Lead frame design
- T568A wiring
- Individual port configurability allows specification flexibility
- Fire retardant
- Phosphor bronze contact material
- Narrow connector allows high-port density in a small area
- High-impact fire-retardant plastic, rated UL94V-0
- High-quality phosphor bronze, plated with 50 micro-inches of gold over 100 micro-inches of nickel for lowest contact resistance and maximum life
- 110 style IDC contacts are solder-plated phosphor bronzed
- Residential Applications
- ANSI/TIA-568-C/1096-A|IEEE 802.3at|FCC Part 68|cULus Listed|UL94 V-0 Flammability Rating
