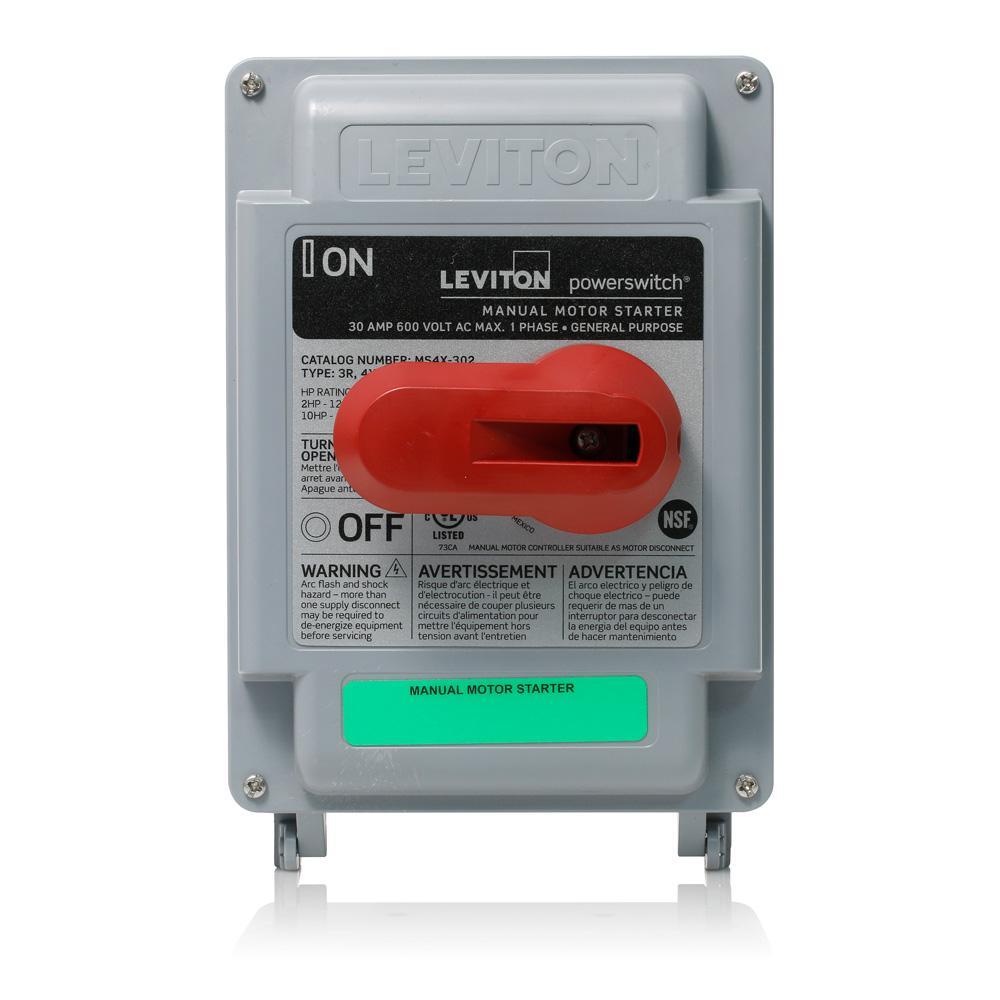

Leviton® MS4X-302 Manual Starters

Documents

Specification Sheet

Leviton Leviton®

Leviton® Powerswitch® MS4X-302 MS4X Non-Fused Non-Grounding Manual Motor Starter, DPST Action, 2 Poles, NEMA 4X/IP67 Enclosure

Sku #07847748032

MFG #MS4X-302

Attributes

Type:	Non-Fused Non-Grounding
Voltage Rating:	600 V AC
Motor Power:	15 hp

Series:	MS4X
Amperage Rating:	30 A
Number of Poles:	2

Captive stainless steel screws in cover won't fall out when cover is open
High impact, non-conductive Valox® PBT resin cover, housing and handle
Interlocking handle prevents cover removal when in ON position
Circuit identification pad for means of identifying specific equipment loads

(4) Mounting Feet

Commercial and Motor Disconnect Applications

ANSI C-73|cUL Listed|UL 508 File No. E63969|IEC 60947-4-1|CSA C22.2 No. 111 File No. E63969|NOM 057|NEMA WD-1/WD-6|NSF Certified|UL94 V-0 Flammability Rating

10 Years Limited

Documents

Specification Sheet

Leviton®Leviton® Powerswitch® MS4X-302 MS4X Non-Fused Non-Grounding Manual Motor Starter, DPST Action, 2 Poles, NEMA 4X/IP67 Enclosure

SKU #07847748032

MFG #MS4X-302
