Sku #07847744302
MFG #M1636-PLI
Attributes

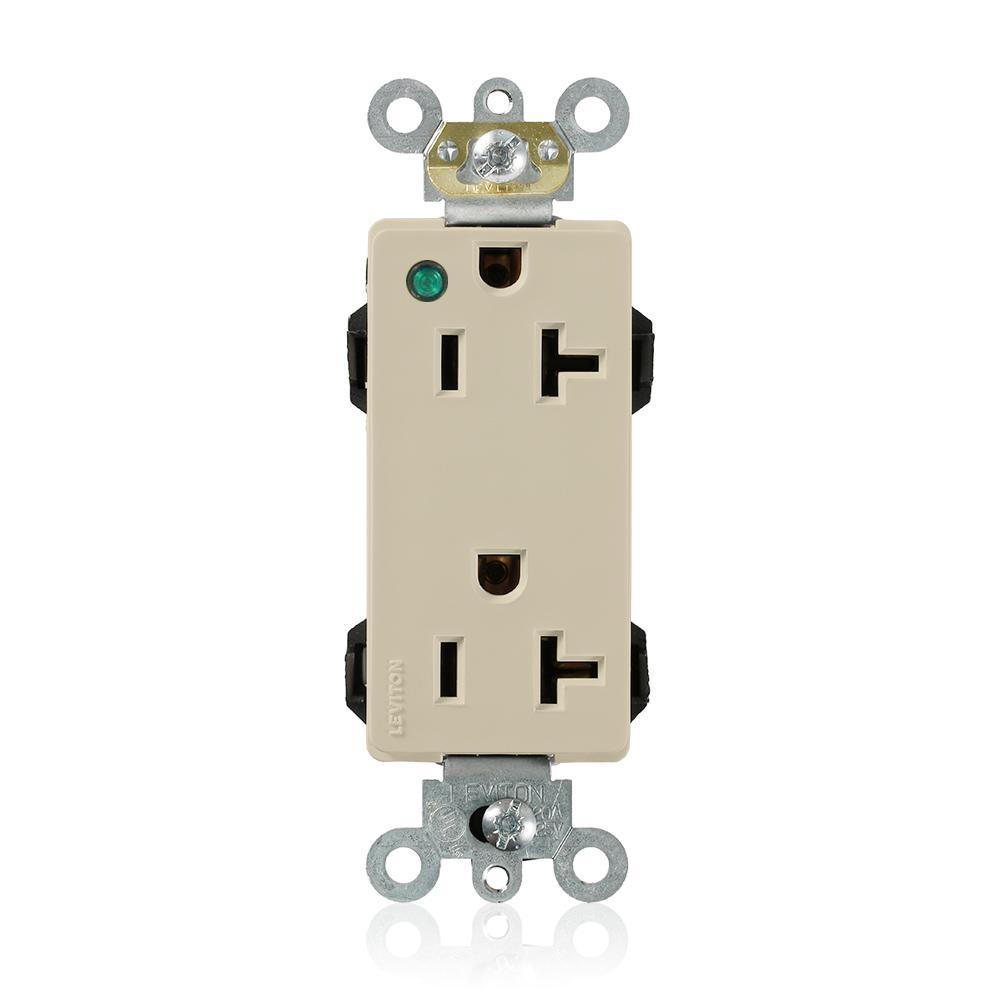

| Type: | Extra Heavy Duty Narrow Body Power Indication Self Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Commercial Applications
- Constructed with impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten the receptacles face to the body
- Large triple wipe, brass T line contacts for superior contact and conductivity
- 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules
- For isolated ground versions, device strap is zinc plated steel and isolated ground system is brass
- Grounding clip permanently secured to strap for easy, simple and secure installation
- Wiring module locks and latches to the receptacle body providing double the connection security
- Receptacle to be installed only with Leviton® MSTWL series wiring modules
- MSTWL wiring module shipped separately with protective label and factory installed circuit ID label
- Smooth face prevents dirt from collecting
- https://www.youtube.com/embed/Ve1u-Od7xR8
- NEMA WD1/WD6|ANSI C73|NOM 057|cULus Listed|UL94 V-2 Flammability Rating|CSA Approved
