Sku #07847741152

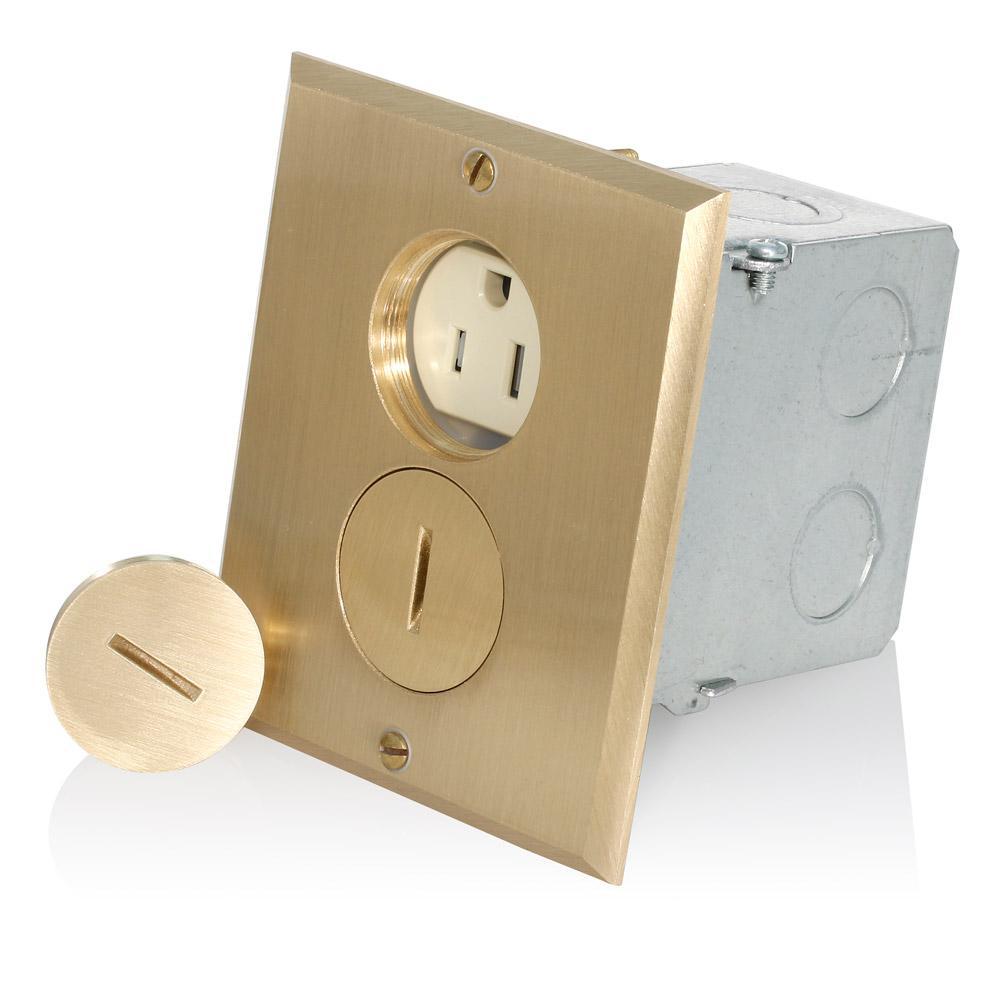

MFG #25249-TFB
Attributes
| Type: | Duplex Self-Grounding Tamper Resistant |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1/2 hp |
| Number of Wires: | 3 |
- Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- #8 terminal screws accept up to no 12 AWG solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield wall design protects ground connection from contact with live circuit conductors
- A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
- Convenient built-in strip gauge
- Zinc plated steel strap material
- Self-grounding
- Brass triple wipe 0.031 THK line contacts
- Brass-plated ground clips
- 14 to 10 AWG wire terminal
- #8-32 brass terminal screws
- 2000 VAC dielectric strength
- Brass finish plate
- Tamper resistant
- Floor box mounting
- https://www.youtube.com/embed/QMUu8zxAzYc
- NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. E152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
