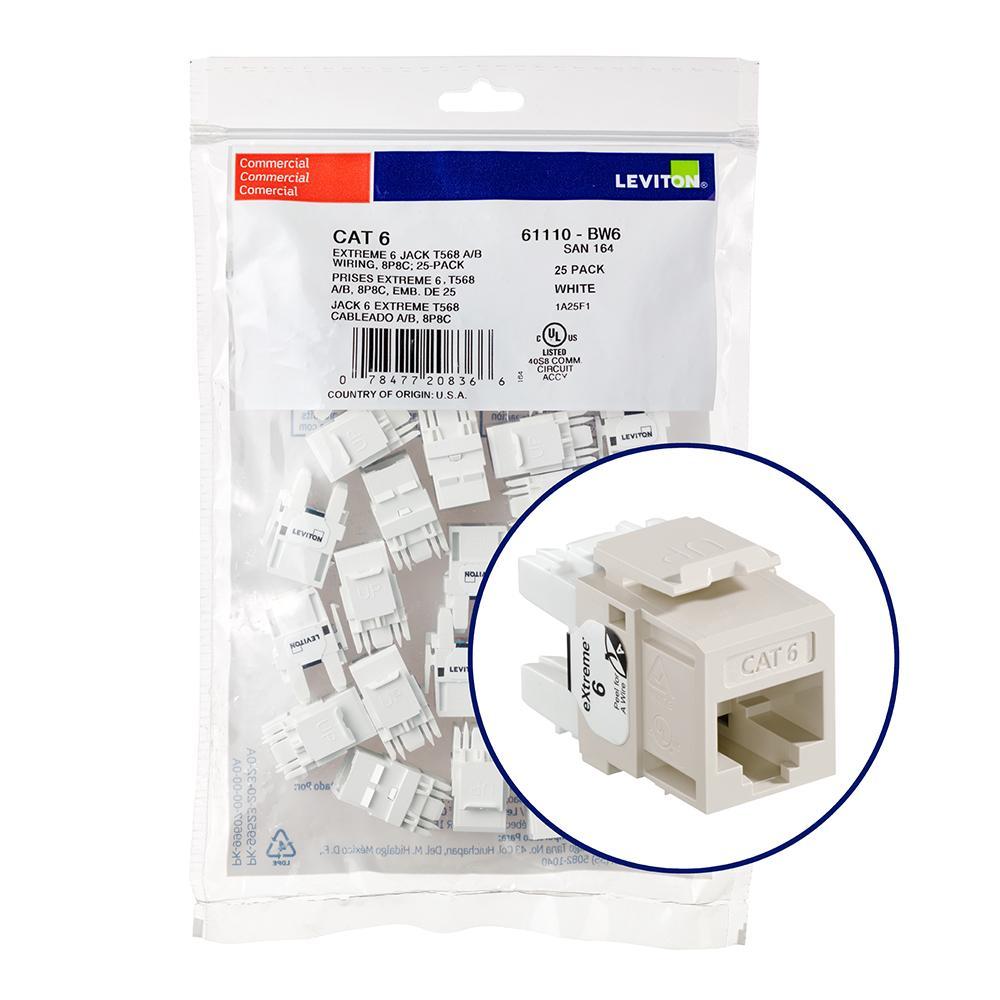

Sku #07847739820
MFG #61110-BT6
Attributes
| Type: | 8-Conductor 8-Position Channel/Component Rated |
| Module Type: | Cat 6 |
| Material: | Plastic |
| Series: | 61110 |
| Mounting Type: | Panel |
| Color: | Light Almond |
- Commercial, Voice, Data and Video Over UTP, Coaxial and Fiber Applications
- ANSI/TIA-568-C.2|ANSI/TIA-1096-A|ISO/IEC 11801 Class E|cULus Listed|FCC Part 68|CSA Certified|NEC Article No. 800|IEEE 802.3at/802.3bt|UL94 V-0 Flammability Rating
- Permanently laser engraved
- Fire retardant
- Gastight IDC connectors prevent corrosion
- Patented retention force technology (RFT) protects tines from damage and increases system longevity
- Terminates 26 to 22 AWG solid conductor
- Unique pair separation tower (PST) allowing for quick and easier termination
- Dual layer T568B/T568A wiring label simplifies punchdown
- Capable of multiple re-termination
- Pair separation tower design facilitates separation of conductors and minimizes untwisting
- 180 deg configuration allows for rear termination
- High quality copper based alloy plated with 50 micro-in of gold over 100 micro-in of nickel
- Capable of multiple reterminations
- Pair separation Tower design facilitates separation of conductors
- High-impact, fire-retardant plastic rated UL 94V-0 connector body
- High-quality copper-based alloy, plated with 50 micro-inch of gold over 100 micro-inch of nickel for lowest contact resistance, maximum life spring-wire contacts
- -40 to 70 deg C storage temperature, -10 to 60 deg C operating temperature
- Terminates 26 to 22 ga solid conductors
- 110 punchdown termination type
