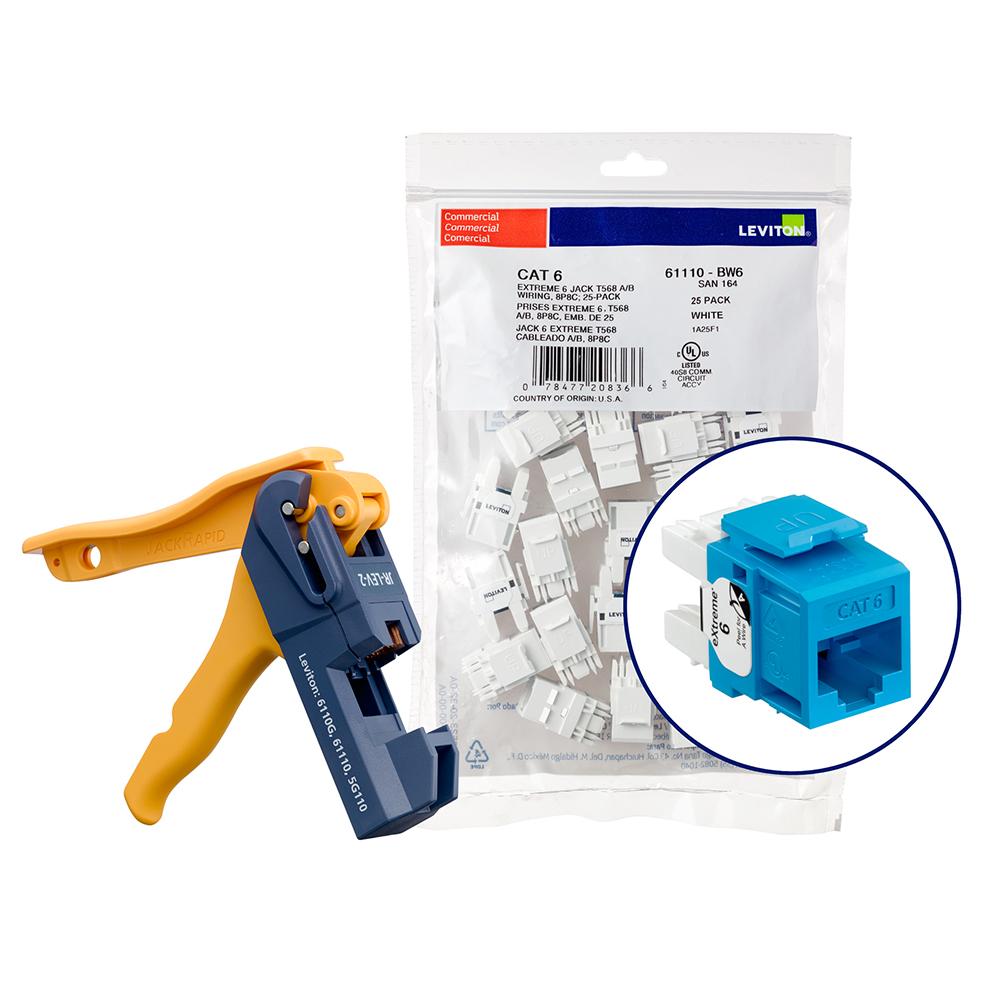

Sku #07847737345
MFG #61110-JL6
Attributes
| Type: | 8-Conductor 8-Position Channel/Component Rated |
| Mounting Type: | Panel |
| Color: | Blue |
| Module Type: | Cat 6 |
| Material: | Plastic |
| Dimensions: | 0.89 in H x 0.64 in W x 1.21 in D |
- Permanently laser engraved
- Fire retardant
- Gastight IDC connectors prevent corrosion
- Patented retention force technology (RFT) protects tines from damage and increases system longevity
- Terminates 26 to 22 AWG solid conductor
- Unique pair separation tower (PST) allowing for quick and easier termination
- Dual layer T568B/T568A wiring label simplifies punchdown
- Capable of multiple re-termination
- Pair separation tower design facilitates separation of conductors and minimizes untwisting
- 180 deg configuration allows for rear termination
- High quality copper based alloy plated with 50 micro-in of gold over 100 micro-in of nickel
- Capable of multiple determinations
- Use in any QuickPort® housing to support extreme category 6 UTP connectivity in surface mount, flush mount, or modular furniture outlets and field configurable panels
- High quality copper based alloy, plated with 50 micro in of gold over 100 micro in of nickel for lowest contact resistance, maximum life
- High quality copper based alloy, plated with 50 micro in of gold over 100 micro in of nickel for lowest contact resistance, maximum life spring wire contacts
- -10 to 60 deg C operating and -40 to 70 deg C storage temperature
- Solid conductor
- Commercial, Voice, Data and Video Applications
- ANSI/TIA-568-C.2|ANSI/TIA-1096-A|ISO/IEC 11801 Class E|cULus Listed|FCC Part 68|CSA Certified|NEC Article 800|IEEE 802.3at/802.3bt|UL94 V-0 Flammability Rating
