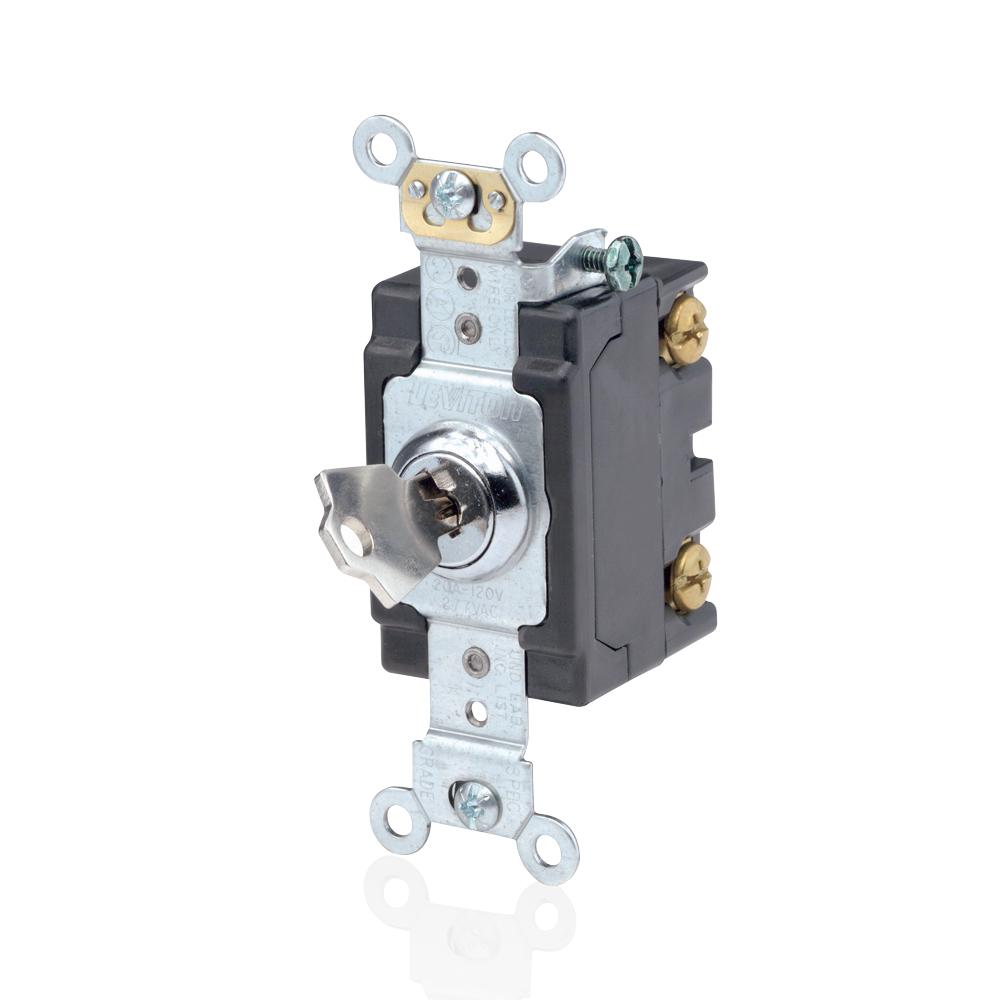

Sku #07847736198
MFG #1221-2KL
Attributes
| Type: | Extra Heavy Duty AC Quiet Self-Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 1 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1 hp, 2 hp |
| Lock Type: | Keyed |
- Heavy duty key operated locking mechanism for maximum tamper-proof operation in schools, institutions, public housing, trailer parks, loading docks, freight yards and other areas
- Chrome lock dome with 2 keys provided per switch
- Back and side wired terminals accept up to 14 to 10 AWG copper or copper clad wire
- Large, combination head terminal screws with external clamps
- Triple combination mounting screws for fast, easy installation
- Heavy gauge rust resistant mounting strap with steel grounding screw and self-grounding clip (self-grounding when used in a properly grounded metal wallbox)
- Key removable in ON or OFF positions
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
- Commercial and Industrial Applications
- NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 111|CSA 152105|Federal Spec WS896E|UL E7458|UL 20|UL94 V-2 Flammability Rated
- (2) Key
- 10 years Limited
