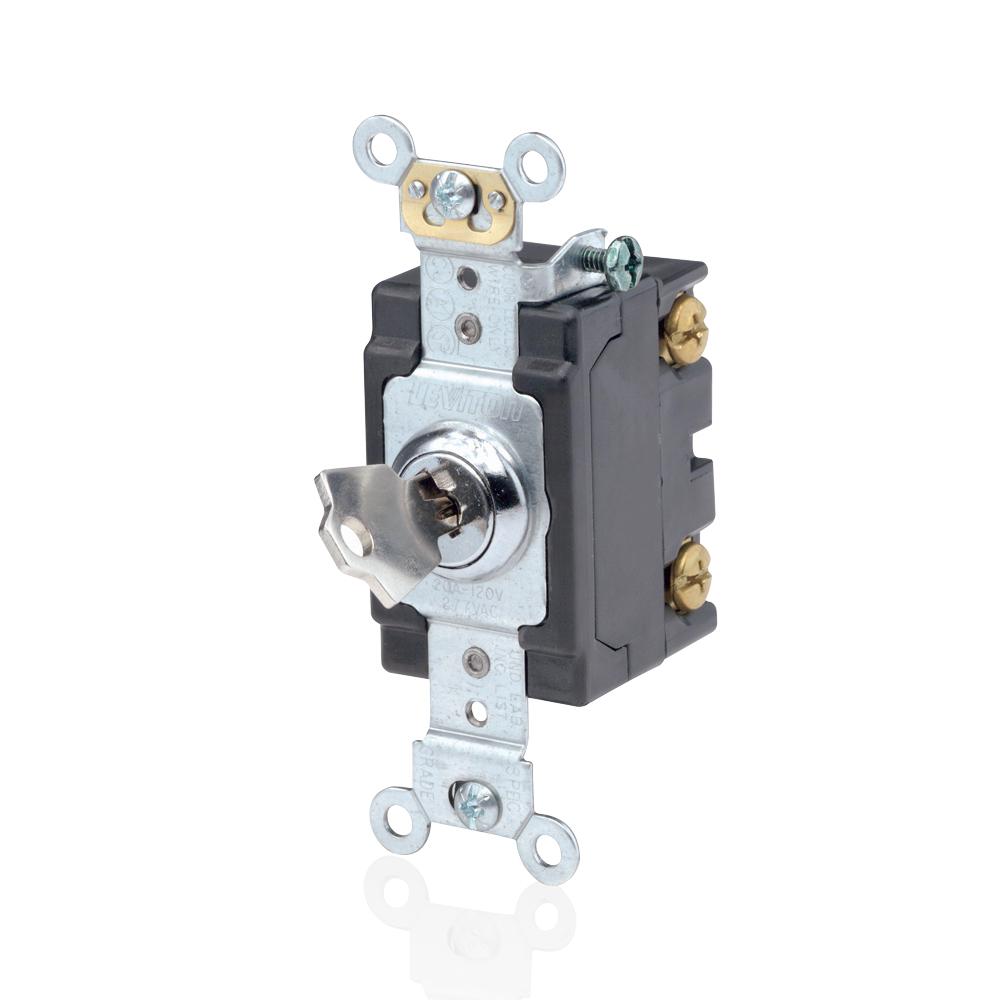

Sku #07847732698
MFG #1222-2KL
Attributes
| Type: | AC Quiet Extra Heavy Duty Specification Grade Barrel Self-Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1 hp, 2 hp |
| Lock Type: | Keyed |
- Commercial Applications
- Heavy duty key operated locking mechanism for maximum tamperproof operation in schools, institutions, public housing, trailer parks, loading docks, freight yards and other areas
- Chrome lock dome with 2 keys provided per switch
- Back and side wired terminals accept up to 14 to 10 AWG copper or copper clad wire
- Large combination head terminal screws with external clamps
- Triple combination mounting screws for fast, easy installation
- Heavy gauge rust resistant mounting strap with steel grounding screw and self-grounding clip (self-grounding when used in a properly grounded metal wallbox)
- Key removable in ON and OFF positions
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
- Key removable in ON or OFF positions
- https://www.panduit.com/content/dam/panduit/en/products/media/8/58/958/0958/106770958.mp4|https://www.panduit.com/content/dam/panduit/en/products/media/0/00/600/4600/110114600.mp4
- (2) Keys
- ANSI C73|NOM 057|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
- 10 years Limited
