- Commercial, Residential, Home Office, Workstations, Great Rooms, Conference Rooms and Stages Applications
- Zinc plated steel strap
- The flange height of 0.27 in meets Americans with Disabilities act (ADA) standards for accessible design section 4.3.8
- Terminal wiring screws fit inside a standard single gang wall box; adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple-wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- No 8 terminal screws accept up to no 12 solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield-wall design protects ground connection from contact with live circuit conductors
- Self-grounding
- Convenient built-in strip gauge
- Brass triple wipe 0.031 THK line contacts
- Single receptacle is ideal for applications that require a dedicated circuit
- Brass plated ground clips
- Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
- Tamper resistant receptacles meet NEC 2014 article 406.12 requirements
- Plate gasket and rubber o-ring combine to seal out moisture and air borne particles
- Meets NEC 2014 article 314.27B for floor boxes
- https://www.youtube.com/embed/QMUu8zxAzYc

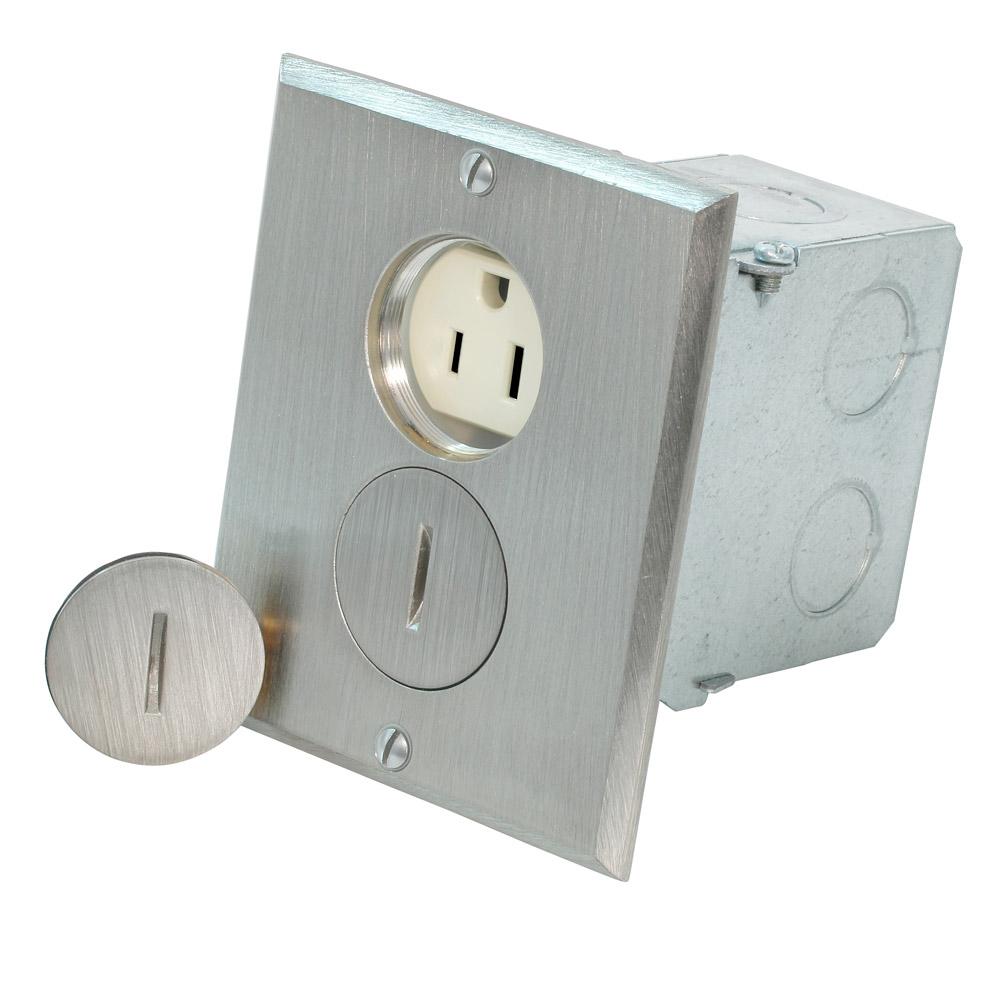

- Brass with Brushed Nickel Finish Floor Plate, Gasket, Screw Cap, O-Ring, Switch Box
- 10 Years Limited
- UL 498 File No. E13399|LR406|E152105|ANSI C73|NEMA WD1/WD6|NOM 057|UL94 V-2 Flammability Rating|ANSI C-73|CSA C22.2 No 42, LR-406
