Sku #07847727490
MFG #CR15-T
Attributes

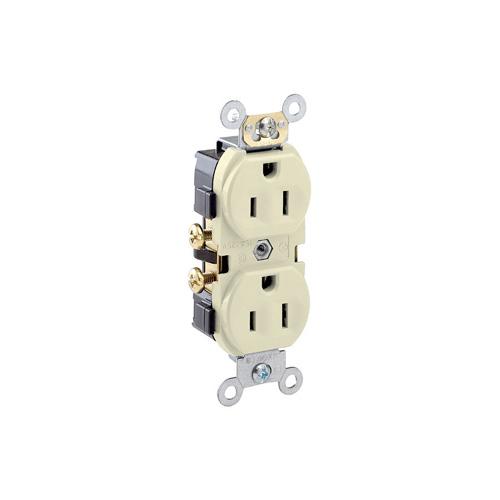

| Type: | 1-Phase Duplex Indented Face Self-Grounding |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1/2 hp |
| Number of Wires: | 3 |
- Manufactured to withstand the demands of commercial and institutional applications
- 14 to 10 AWG wire terminal
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Self-grounding
- Brass double wipe 0.031 THK line contacts
- Steel #8-32 terminal screws
- 2000 VAC dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Narrow body
- Shallow design for maximum wiring room in box
- NEMA WD1/WD6|ANSI C73|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating|ANSI C-73|NOM 057 Approved|WD-6 Compliant
- Hotels, Schools, Hospitals and Commercial Office Buildings Applications
